Pizzato
Inventarna številka:FD 1636-M2
FD 1636-M2
FD 1636-M2
Availability: Ships in 2–3 weeks
Podatka o razpoložljivosti osebnega prevzema ni mogoče naložiti

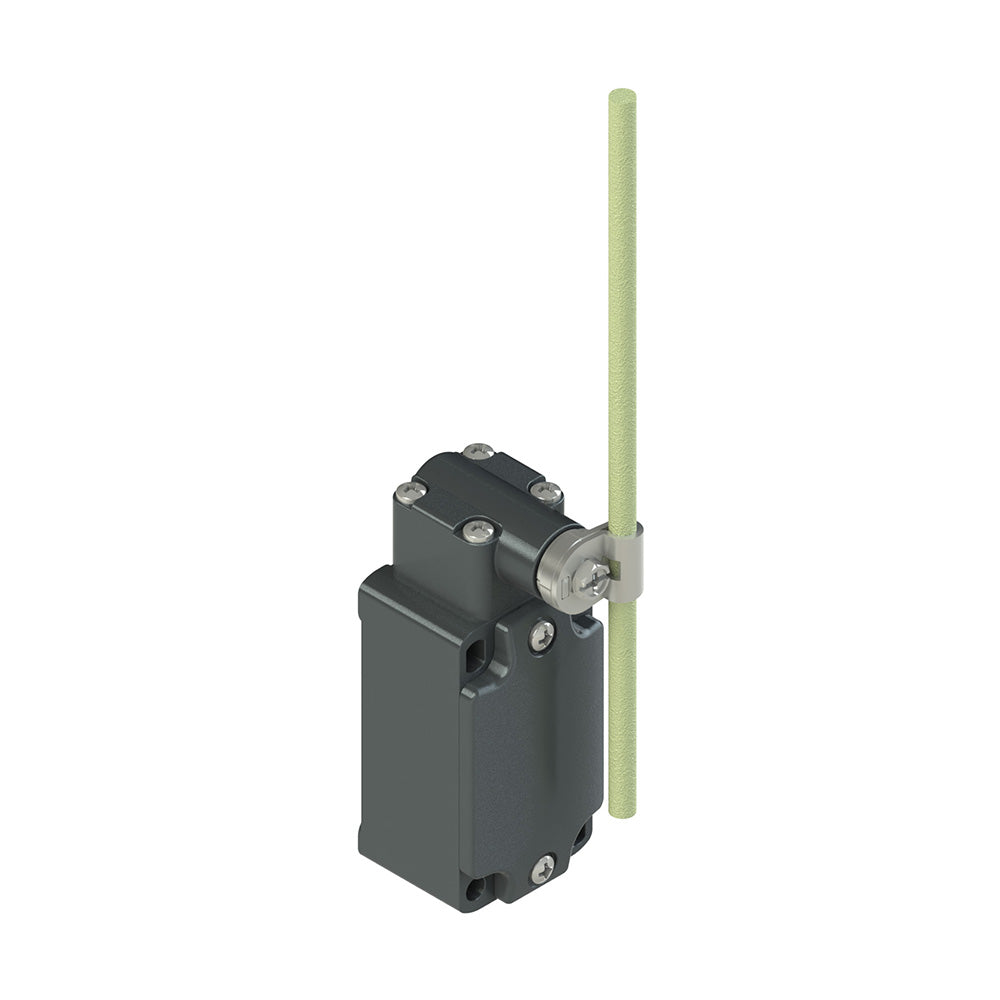

Position switch with adjustable glass-fibre rod lever, Housing: Metal housing, one threaded M20x1,5 conduit entry (FD series), Contact block: 2NC slow action, independent contacts (B16), Head: For rotating levers for 2NC contack blocks, slow action independent, Actuator: With adjustable glass-fibre rod lever, 6 mm diameter, Protection degree: IP67 according to EN 60529.
Technical specifications
| Manufacturer part number | FD 1636-M2 |
|---|---|
| EAN | 8018851328770 |
| Minimum order quantity | 1 |
| Weight | 416 g |
| Customs tariff number | 85369095 |
| Product range | FD |
| ETIM class | EC000030 |
