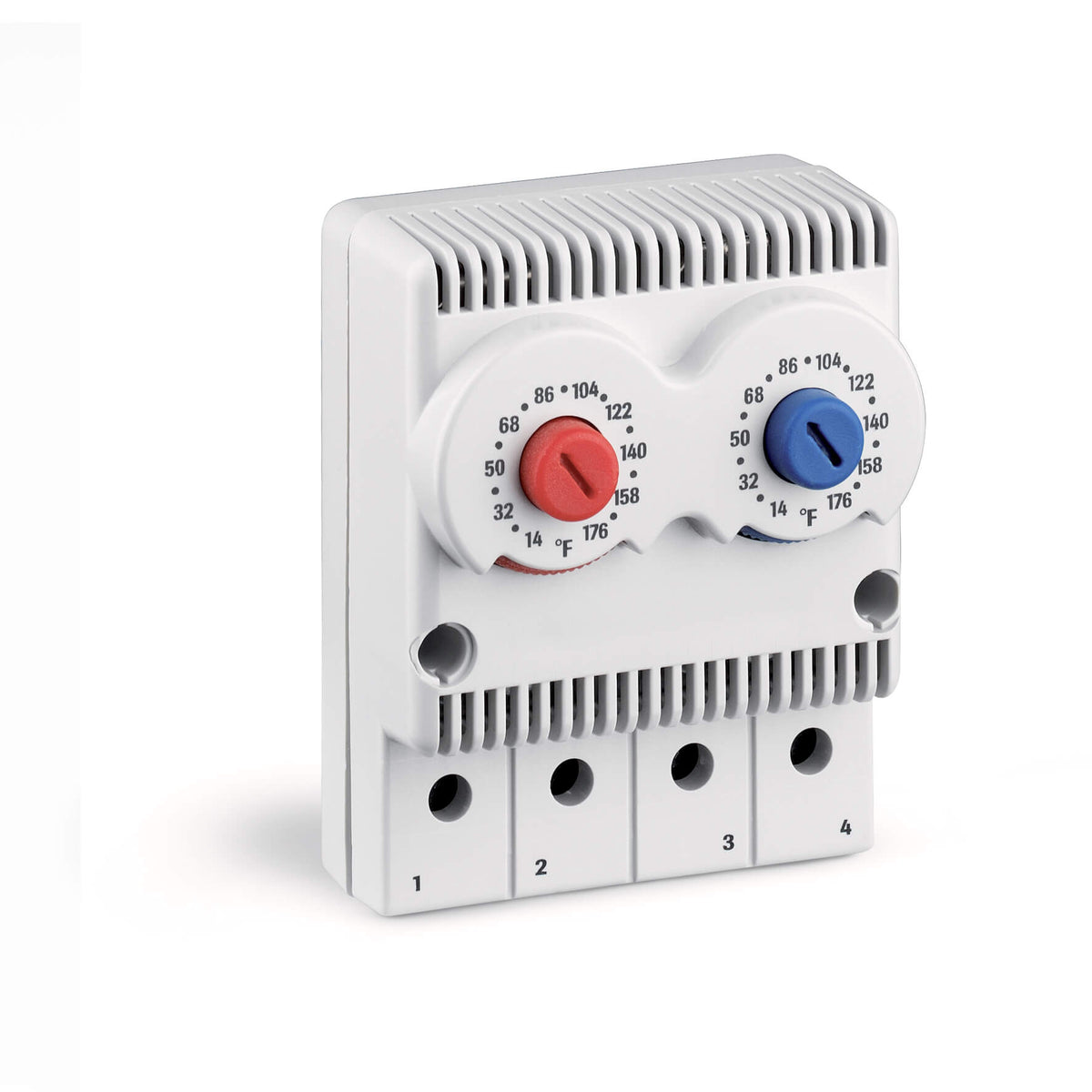

Fandis TRT2-10A230V-NCNCF – THERMOSTAT
Fandis TRT2-10A230V-NCNCF – THERMOSTAT
Price on request
Dostava se obračuna ob zaključku nakupa.
Fandis twin thermostats are designed to provide air temperature control and monitoring in enclosure for trouble free operations with electrical components Twin thermostats integrate two independently switchable devices within one compact unit, allowing the simultaneous control of heating and cooling equipment.
Technical specifications
| Manufacturer part number | TRT2-10A230V-NCNCF |
|---|---|
| Approvals | CE; cURus; UKCA |
| Appliance Class | II |
| Max Contact Current | 15/15 A |
| Operating Voltage | 12-60 V d.c. |
| Rated Current | 10 A |
| Rated Voltage | 60 V d.c. 110-250 V a.c. |
| IP Protection Degree | IP20 |
| Max Humidity | 95 % RH |
| Operating Temperature | -40÷80 °C |
| Storage Temperature | -40÷90 °C |
| Accuracy | ± 3 K |
| Casing Material | PC/ABS |
| Contact Type | NC / Open on rise |
| Electrical Connection | Terminal Block |
| Fixing System | DIN rail |
| Life Expectancy | 100000 Cycles |
| RAL Number | 7035 |
| Rated Hysteresis | 7 K |
| Sensor Type | Bi-Metal |
| Setting Range | 14÷176 °F |
| Setting Resolution | 9 °F |
| Wires Section | 0.75-2.5 mm² 18-14 AWG |
| UL Ambient Temperature | 50 °C |
| UL Environmental Type Rating | Open Type |
| UL File Number Recognized Component | E247491 |
