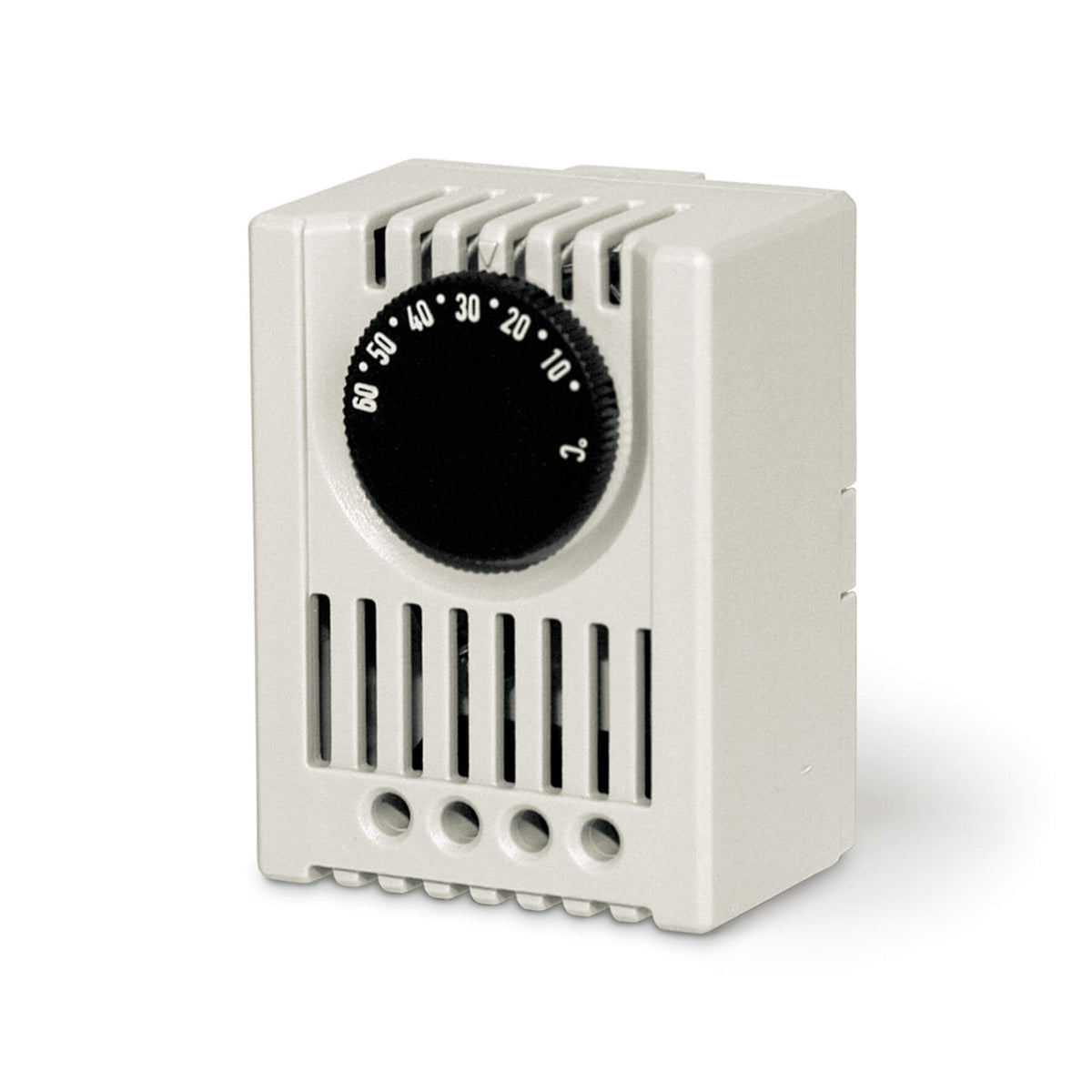

Fandis TRT-230V-S01 – THERMOSTAT

Name: Fandis TRT-230V-S01 – THERMOSTAT
Brand: Fandis
SKU: TRT-230V-S01
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

Fandis thermostats provide a reliable solution for accurate temperature control in protecting sensitive electronic components. Available with normally closed, normally open or change-over contacts, these mechanical regulators are used with ventilation or heating products to keep the desired thermal conditions inside the enclosure.

Technical specifications

Manufacturer part number	TRT-230V-S01
Approvals	CE; UKCA
Appliance Class	II
Max Contact Current	10 A
Rated Current	Heating a.c. 10(4)-Cooling a.c. 5(2) A
Rated Voltage	230 V a.c.
IP Protection Degree	IP30
Operating Temperature	0÷60 °C
Storage Temperature	-10-65 °C
Accuracy	± 3 K
Casing Material	PC/ABS
Contact Type	Change Over
Electrical Connection	Terminal Block
Fixing System	DIN rail
Life Expectancy	100000 Cycles
RAL Number	7035
Rated Hysteresis	7 K
Sensor Type	Bi-Metal
Setting Range	5÷60 °C
Setting Resolution	5 °C
Wires Section	0.75-2.5 mm² 18-14 AWG
