Fandis
Inventarna številka:TRT-10A230V-NC

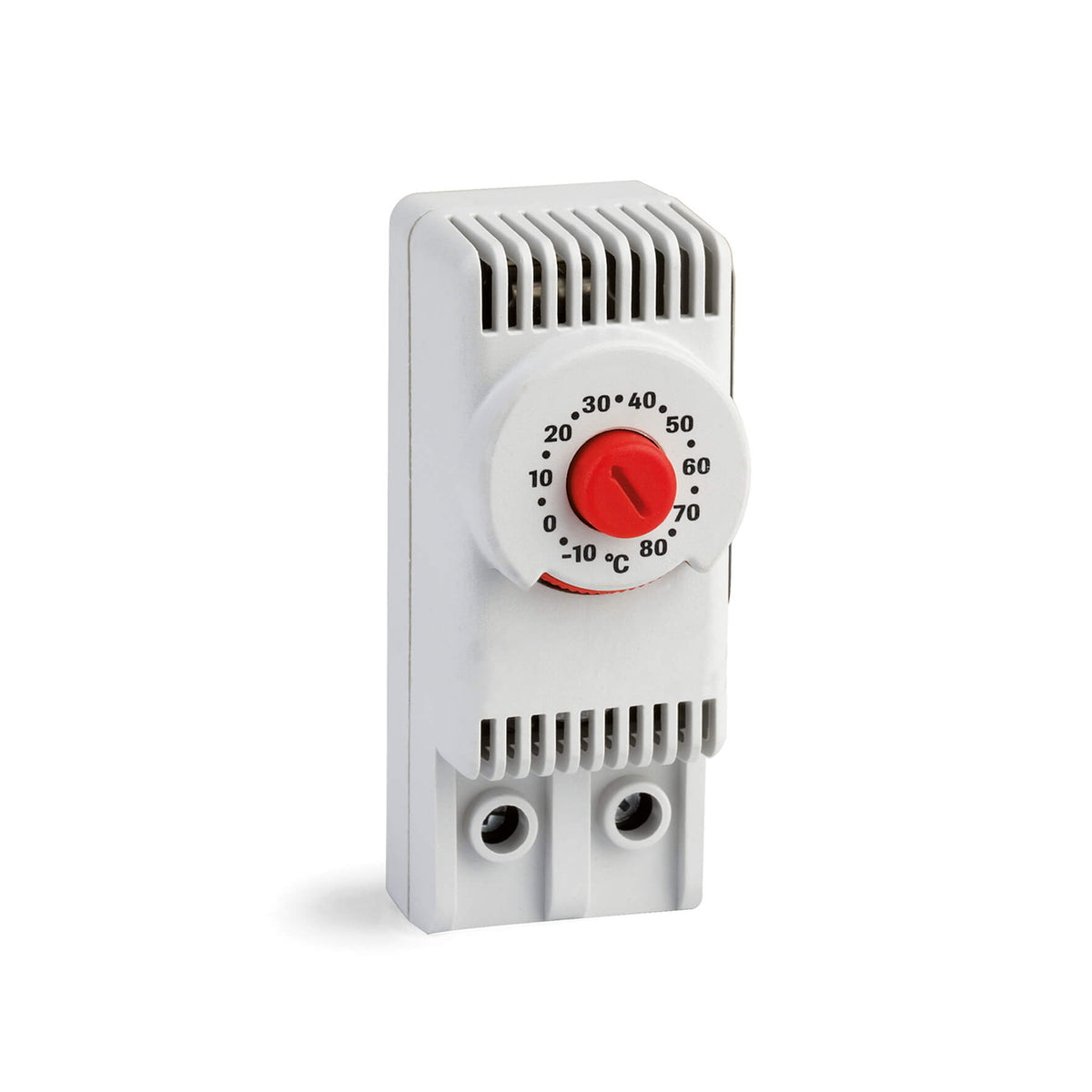

Fandis TRT-10A230V-NC – THERMOSTAT
Fandis TRT-10A230V-NC – THERMOSTAT
Price on request
Dostava se obračuna ob zaključku nakupa.
Fandis thermostats provide a reliable solution for accurate temperature control in protecting sensitive electronic components. Available with normally closed, normally open or change-over contacts, these mechanical regulators are used with ventilation or heating products to keep the desired thermal conditions inside the enclosure.
Technical specifications
| Manufacturer part number | TRT-10A230V-NC |
|---|---|
| Approvals | CE; cURus; UKCA |
| Appliance Class | II |
| Max Contact Current | 15 A |
| Operating Voltage | 12-60 V d.c. |
| Rated Current | 10 A |
| Rated Voltage | 60 V d.c. 110-250 V a.c. |
| IP Protection Degree | IP20 |
| Max Humidity | 90 % RH |
| Operating Temperature | -40÷80 °C |
| Storage Temperature | -40÷90 °C |
| Accuracy | ± 3 K |
| Casing Material | PA66 UL94 V-0 |
| Contact Type | NC / Open on rise |
| Electrical Connection | Terminal Block |
| Fixing System | DIN rail |
| Life Expectancy | 100000 Cycles |
| RAL Number | 7035 |
| Rated Hysteresis | 7 K |
| Sensor Type | Bi-Metal |
| Setting Range | -10÷80 °C |
| Setting Resolution | 5 °C |
| Wires Section | 0.75-2.5 mm² 18-14 AWG |
| UL Ambient Temperature | 50 °C |
| UL Environmental Type Rating | Open Type |
| UL File Number Recognized Component | E247491 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Fandis
