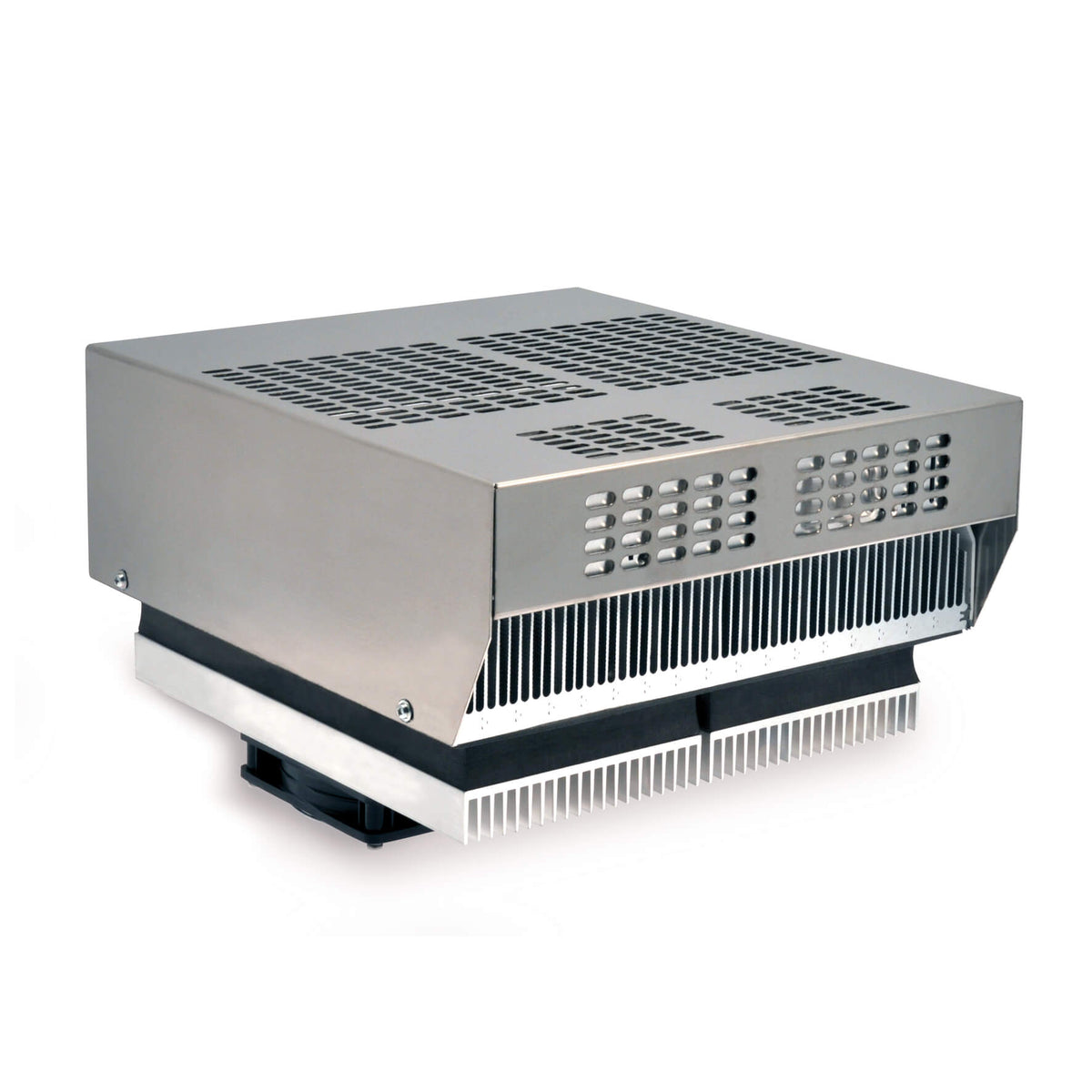

Fandis TCU200AC40-SIP – TE COOLING UNIT 200W WITH INTEGRATED POWER SUPPLY
Fandis TCU200AC40-SIP – TE COOLING UNIT 200W WITH INTEGRATED POWER SUPPLY
Price on request
Dostava se obračuna ob zaključku nakupa.
Thermoelectric units are solid state devices which operate as heat pumps to transfer heat using the Peltier effect. This cost-effective solution is ideal for the climate control of small enclosure. No compressor or moving part (except the fans), no hazardous gases and not sensitive to vibrations are the main advantages.
Technical specifications
| Manufacturer part number | TCU200AC40-SIP |
|---|---|
| Approvals | CE; UKCA |
| Appliance Class | II |
| Frequency | 50/60 Hz |
| Operating Voltage | 88-264 V a.c. |
| Rated Power | 245 W |
| Rated Voltage | 115-230 V a.c. |
| IP Protection Degree | IP55 Warm Side Fan |
| Operating Temperature | -20÷70 °C |
| Storage Temperature | -20÷70 °C |
| Casing Material | Stainless Steel |
| Electrical Connection | Terminal Block |
| Fixing System | Screws |
| Rated Cooling Power | 201 W |
