Fandis
Inventarna številka:IGR35F

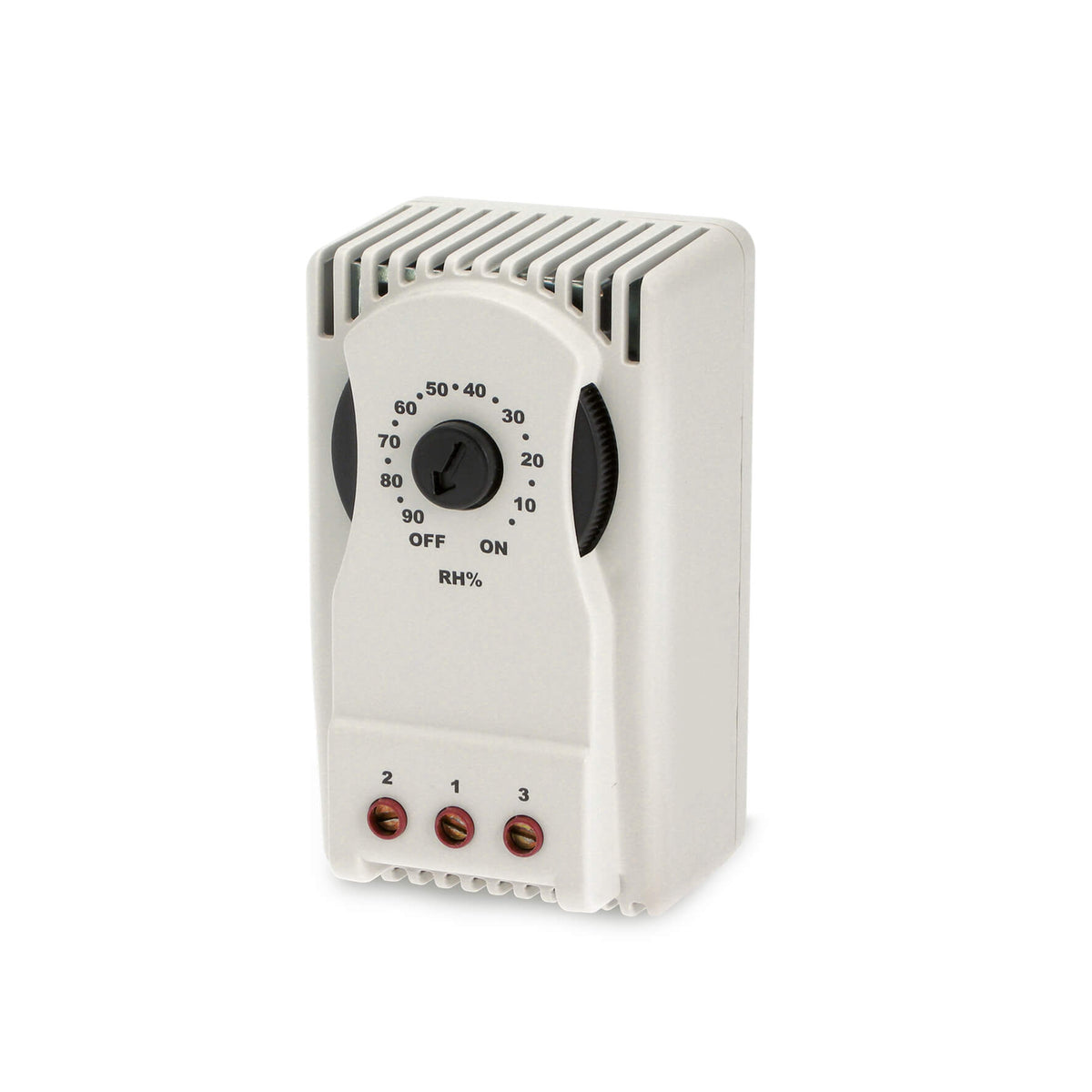

Fandis IGR35F – HYGROSTAT CHANGE OVER
Fandis IGR35F – HYGROSTAT CHANGE OVER
Price on request
Dostava se obračuna ob zaključku nakupa.
Fandis mechanical hygrostat switches on electrical enclosure heating or cooling units when a preset relative humidity (RH) is exceeded. The relative humidity is kept above the dew point and the condensation of water on electrical components and the corrosion of unprotected sheet metal is prevented.
Technical specifications
| Manufacturer part number | IGR35F |
|---|---|
| Approvals | CE; cURus; UKCA |
| Appliance Class | II |
| Rated Current | 10-5 A |
| Rated Voltage | 120-240 V a.c. |
| IP Protection Degree | IP20 |
| Operating Temperature | 10÷60 °C |
| Storage Temperature | -40÷60 °C |
| Accuracy | ± 5 % RH |
| Casing Material | PC/ABS UL94 V-0 |
| Contact Type | Change Over |
| Electrical Connection | Terminal Block |
| Fixing System | DIN rail |
| Life Expectancy | 30000 Cycles |
| RAL Number | 7035 |
| Rated Hysteresis | 5 % RH |
| Sensor Type | Polyamide Ribbon |
| Setting Range | 10-90 % RH |
| Setting Resolution | 5 % RH |
| Wires Section | 1.5-4 mm² 14-12 AWG |
| UL Ambient Temperature | 40 °C |
| UL Environmental Type Rating | Open Type |
| UL File Number Recognized Component | E247491 |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Fandis
