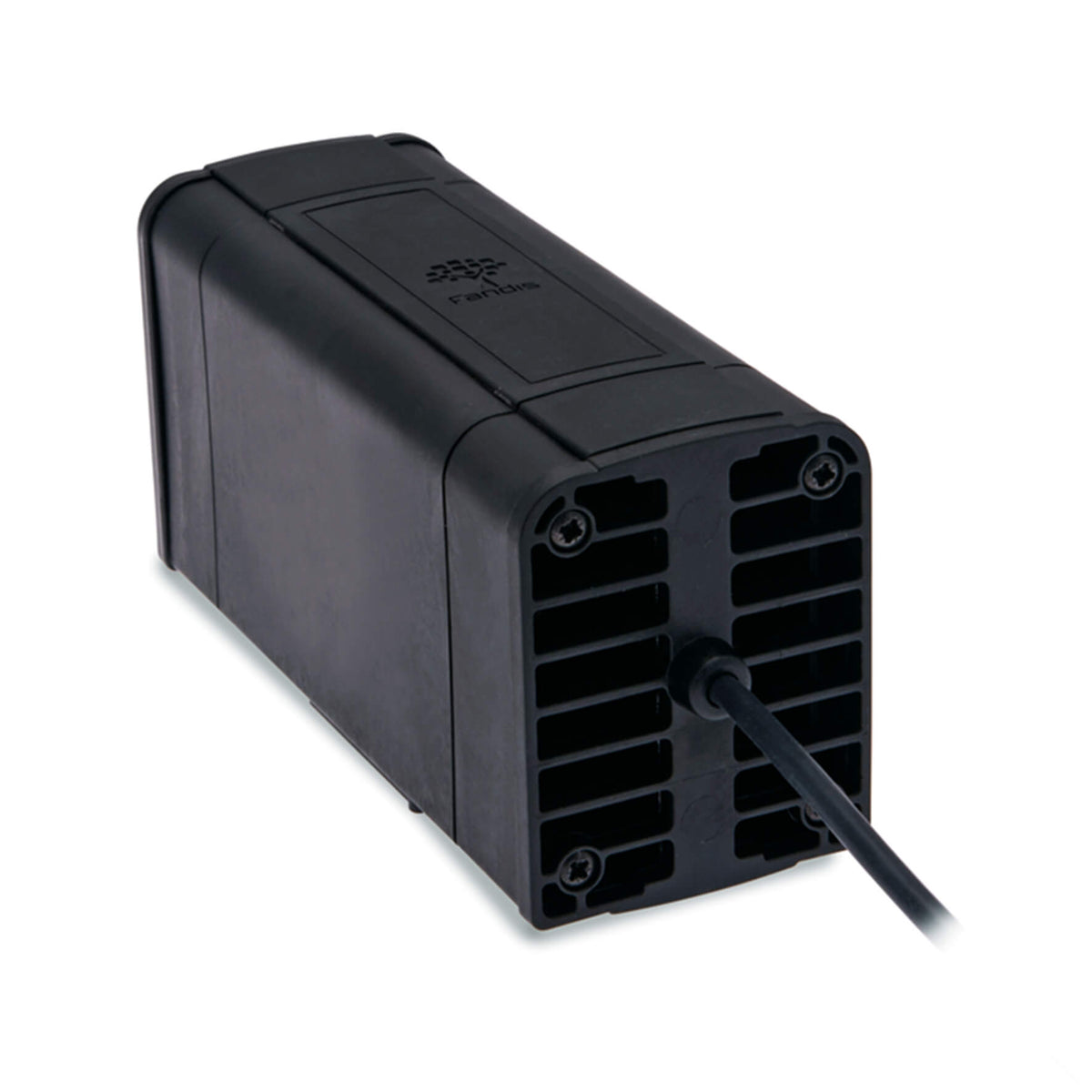

Fandis HWP060 – HEATER 60W
Fandis HWP060 – HEATER 60W
Price on request
Dostava se obračuna ob zaključku nakupa.
Fandis PTC heaters are used for warming up the air inside enclosure, protecting electrical and electronic components from condensation and corrosion. These H series PTC heaters with cable connection are available in two versions: in metal or plastic, with low surface thermal conductivity to keep safe maintenance operations.
Technical specifications
| Manufacturer part number | HWP060 |
|---|---|
| Approvals | CE; cURus; UKCA |
| Appliance Class | I |
| Frequency | 50/60 Hz |
| Max Current | 1.7 A |
| Operating Voltage | 99-264 V a.c. |
| Rated Voltage | 110-240 V a.c./d.c. |
| IP Protection Degree | IP20 |
| Operating Temperature | -30÷50 °C |
| Storage Temperature | -40÷70 °C |
| Cable Length | 500 mm |
| Casing Material | Black PET UL94 V-0 |
| Electrical Connection | Wires |
| Fixing System | DIN rail |
| Wires Section | 20 AWG |
| Heating Power | 60 W |
| UL Ambient Temperature | 50 °C |
| UL Environmental Type Rating | Open Type |
| UL File Number Recognized Component | E237844 |
