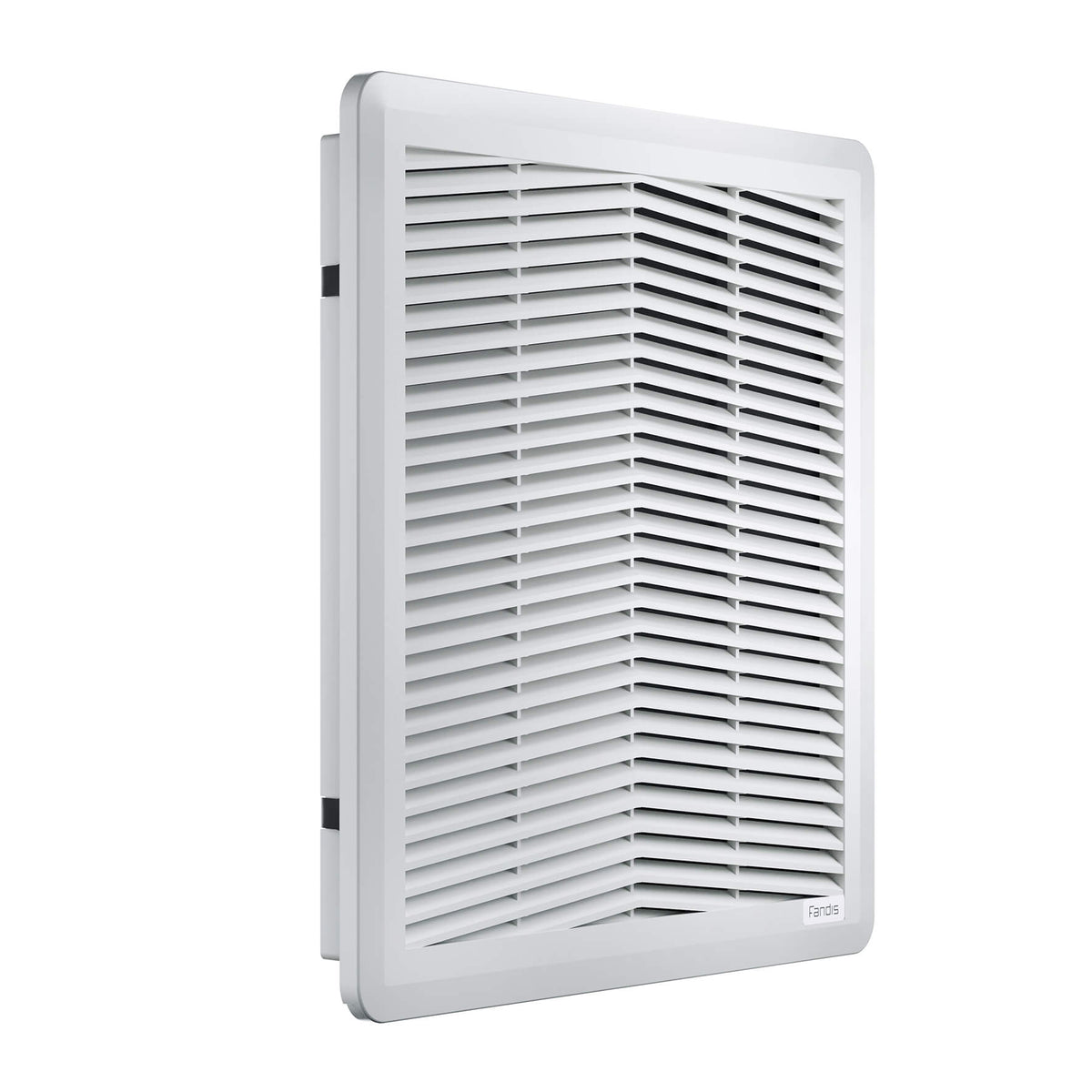

Fandis FF20U5 – FILTER KIT IP55
Fandis FF20U5 – FILTER KIT IP55
Price on request
Dostava se obračuna ob zaključku nakupa.
FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.
Technical specifications
| Manufacturer part number | FF20U5 |
|---|---|
| Approvals | CE; cURus; cULus; cCSAus; UKCA |
| IP Protection Degree | IP55 |
| Operating Temperature | -30÷60 °C |
| Storage Temperature | -40÷70 °C |
| Casing Material | PC/ABS UL94 V-0 |
| Filter Class | G4 EN 779 ISO coarse 75% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| RAL Number | 7035 |
| Spare Parts Filter Media | M20FPF |
| Mounting Wall Thickness | 1.3-3.7 mm |
| UL Environmental Type Rating | Type 1, 12 |
| UL File Number Listed | E500932 |
| UL File Number Recognized Component | E237844 |
| UL Surrounding Temperature | 60 °C |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
