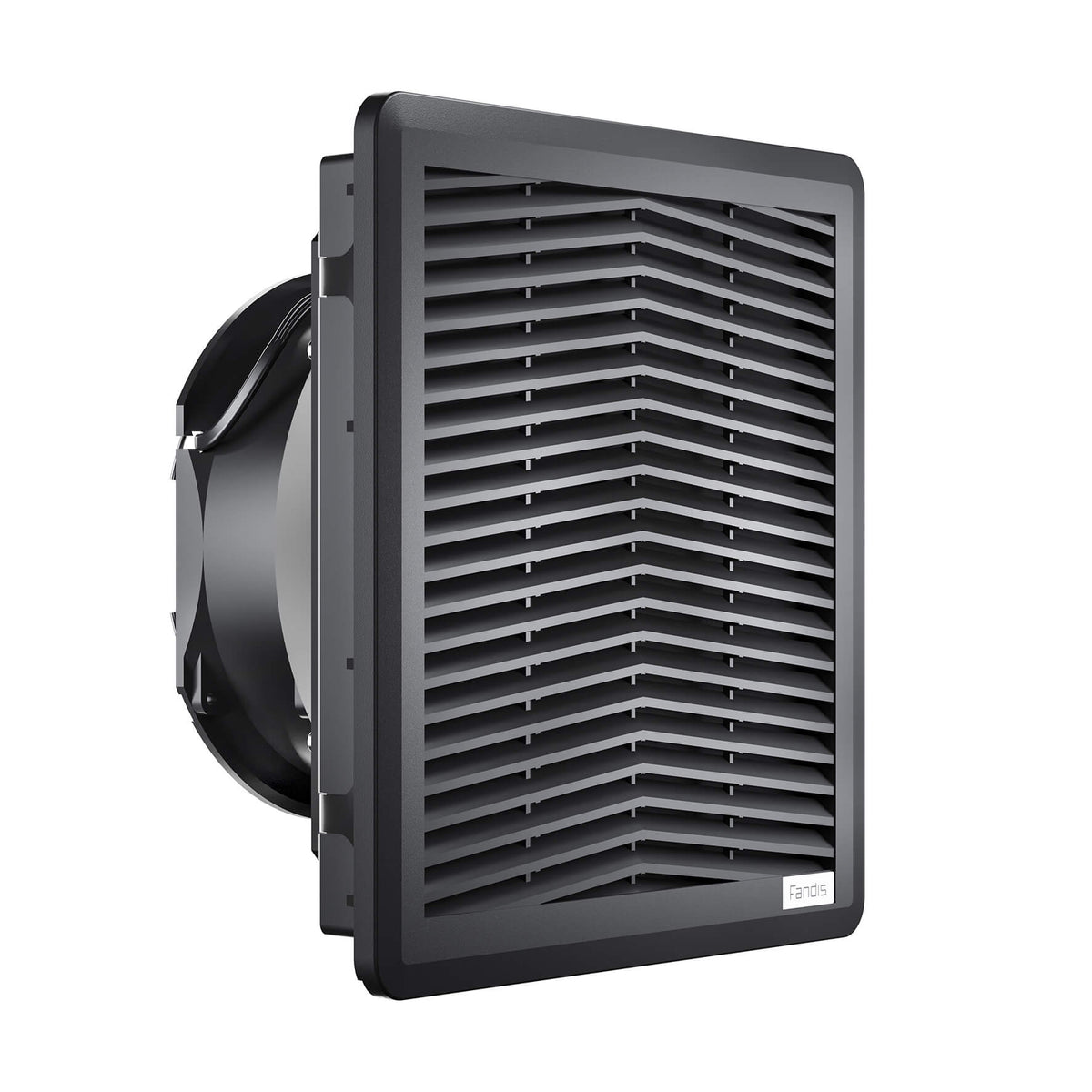

Fandis FF15A115NN532 – FAN FILTER 115Va.c. RAL 9005 IP55

Name: Fandis FF15A115NN532 – FAN FILTER 115Va.c. RAL 9005 IP55
Brand: Fandis
SKU: FF15A115NN532
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF15A115NN532
Approvals	CE; cURus; cULus; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Thermally Protected
Operating Voltage	103-126 V a.c.
Rated Current	0.36/0.361 A
Rated Power	39/41 W
Rated Voltage	115 V a.c.
IP Protection Degree	IP55
Operating Temperature	-10÷55 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Direct
Casing Material	PBT UL94 5VB
Electrical Connection	Screwless Terminal Block
Fan Noise	52/56 dB(A)
Filter Class	G4 EN 779 ISO coarse 75% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	100000 h at 20 °C
RAL Number	9005
Wires Section	0.75-2.5 mm² 20-14 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1.3-3.7 mm
Airflow with Exhaust Filter	122/149 m³/h
Max Airflow	186/225 m³/h
Max Static Pressure	119/158 Pa
UL Environmental Type Rating	Type 3R
UL File Number Listed	E500932
UL File Number Recognized Component	E237844
UL Surrounding Temperature	55 °C
