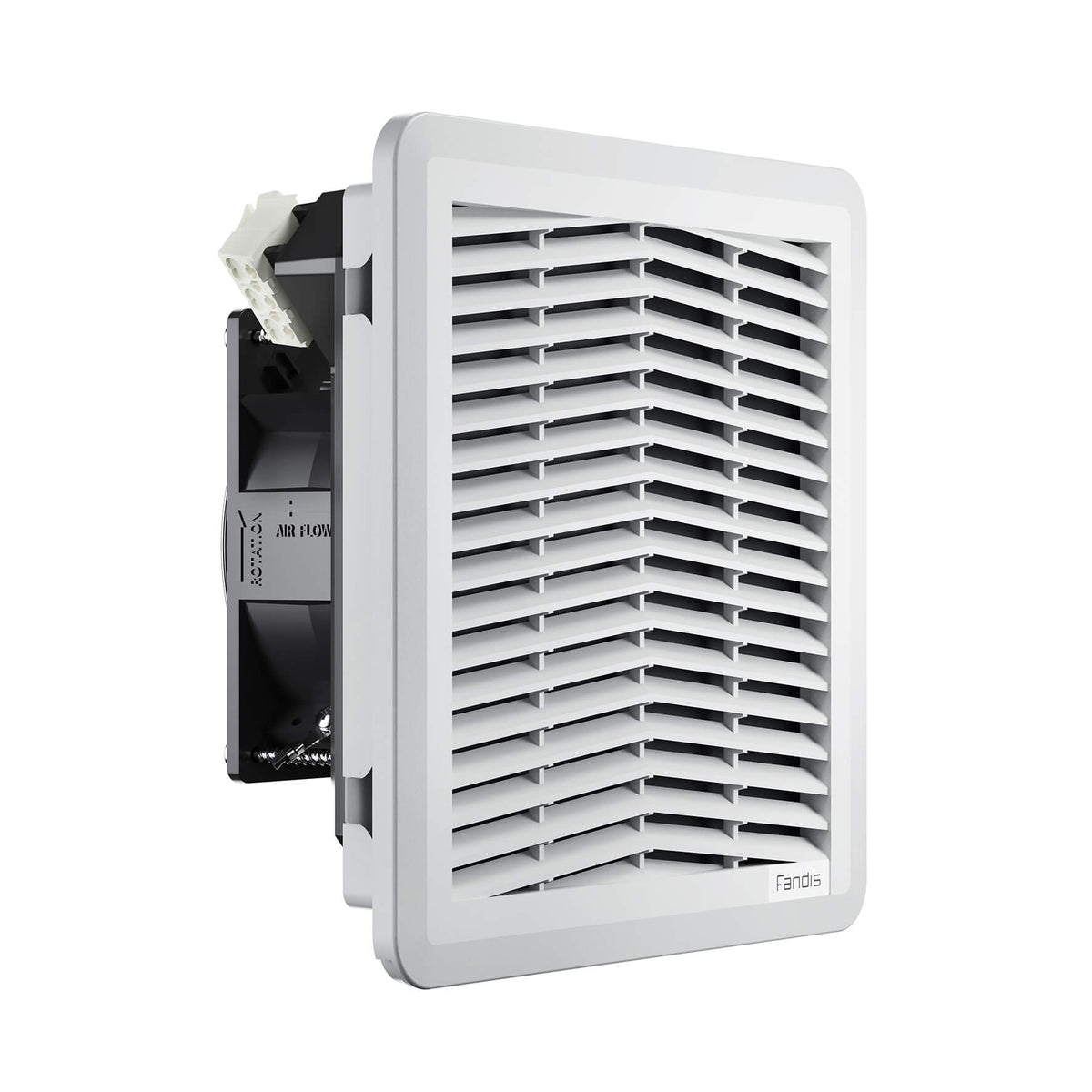

Fandis FF13PA115UN5 – FAN FILTER
Fandis FF13PA115UN5 – FAN FILTER
Price on request
Shipping calculated at checkout.
FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.
Technical specifications
| Manufacturer part number | FF13PA115UN5 |
|---|---|
| Approvals | CE; cURus; cULus; cCSAus; UKCA |
| Appliance Class | I |
| Frequency | 50/60 Hz |
| Motor Protection | Thermally Protected |
| Operating Voltage | 92-126.5 V a.c. |
| Rated Current | 0.2/0.18 A |
| Rated Power | 16/15 W |
| Rated Voltage | 115 V a.c. |
| IP Protection Degree | IP55 |
| Operating Temperature | -10÷55 °C |
| Storage Temperature | -40÷70 °C |
| Airflow Direction | Direct |
| Casing Material | PC/ABS UL94 V-0 |
| Electrical Connection | Screwless Terminal Block |
| Fan Noise | 40/44 dB(A) |
| Filter Class | G4 EN 779 ISO coarse 75% ISO 16890 |
| Filter Material | thermo-linked progressive structure synthetic fibre |
| Life Expectancy | 100000 h at 25 °C |
| RAL Number | 7035 |
| Spare Parts Filter Media | M13FPF |
| Wires Section | 0.75-2.5 mm² 20-14 AWG |
| Bearing | Ball Bearing |
| Mounting Wall Thickness | 1.3-3.2 mm |
| Airflow with Exhaust Filter | 62/75 m³/h |
| Max Airflow | 94/110 m³/h |
| Max Static Pressure | 68/84 Pa |
| UL Environmental Type Rating | Type 1, 12 |
| UL File Number Listed | E500932 |
| UL File Number Recognized Component | E237844 |
| UL Surrounding Temperature | 55 °C |
