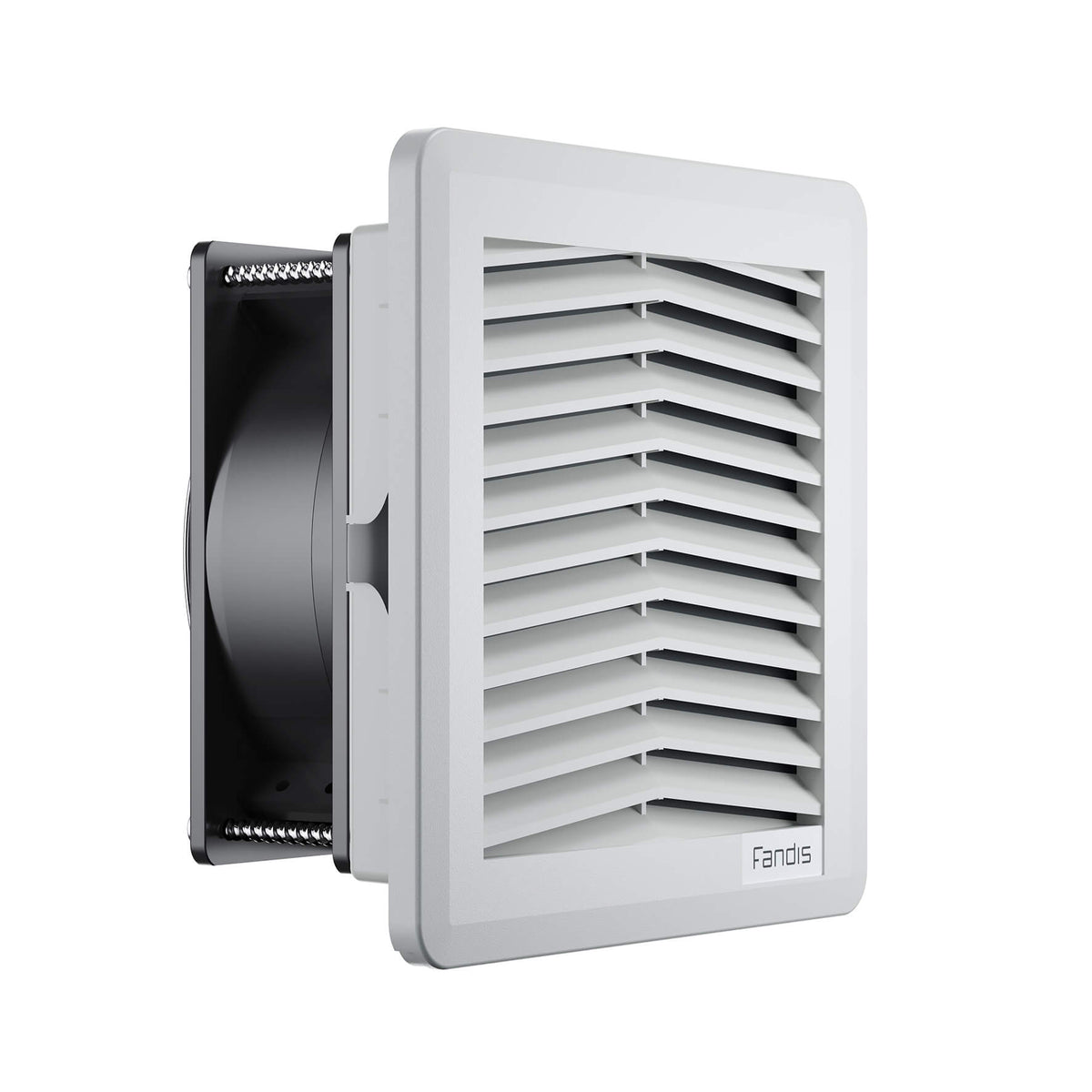

Fandis FF12A24UF – FAN FILTER

Name: Fandis FF12A24UF – FAN FILTER
Brand: Fandis
SKU: FF12A24UF
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF12A24UF
Approvals	CE; UKCA
Frequency	50/60 Hz
Motor Protection	Impedance Protected
Operating Voltage	19-26 V a.c.
Rated Current	0.77/0.76 A
Rated Power	15/15 W
Rated Voltage	24 V a.c.
IP Protection Degree	IP54
Operating Temperature	-10÷60 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Direct
Casing Material	PC/ABS UL94 V-0
Electrical Connection	Connector
Fan Noise	46/49 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	57000 h at 25 °C
RAL Number	7035
Spare Parts Filter Media	M12FPF-EU3
Bearing	Ball Bearing
Mounting Wall Thickness	1.3-3.2 mm
Airflow with Exhaust Filter	28/31 m³/h
Max Airflow	39/44 m³/h
Max Static Pressure	43/41 Pa
