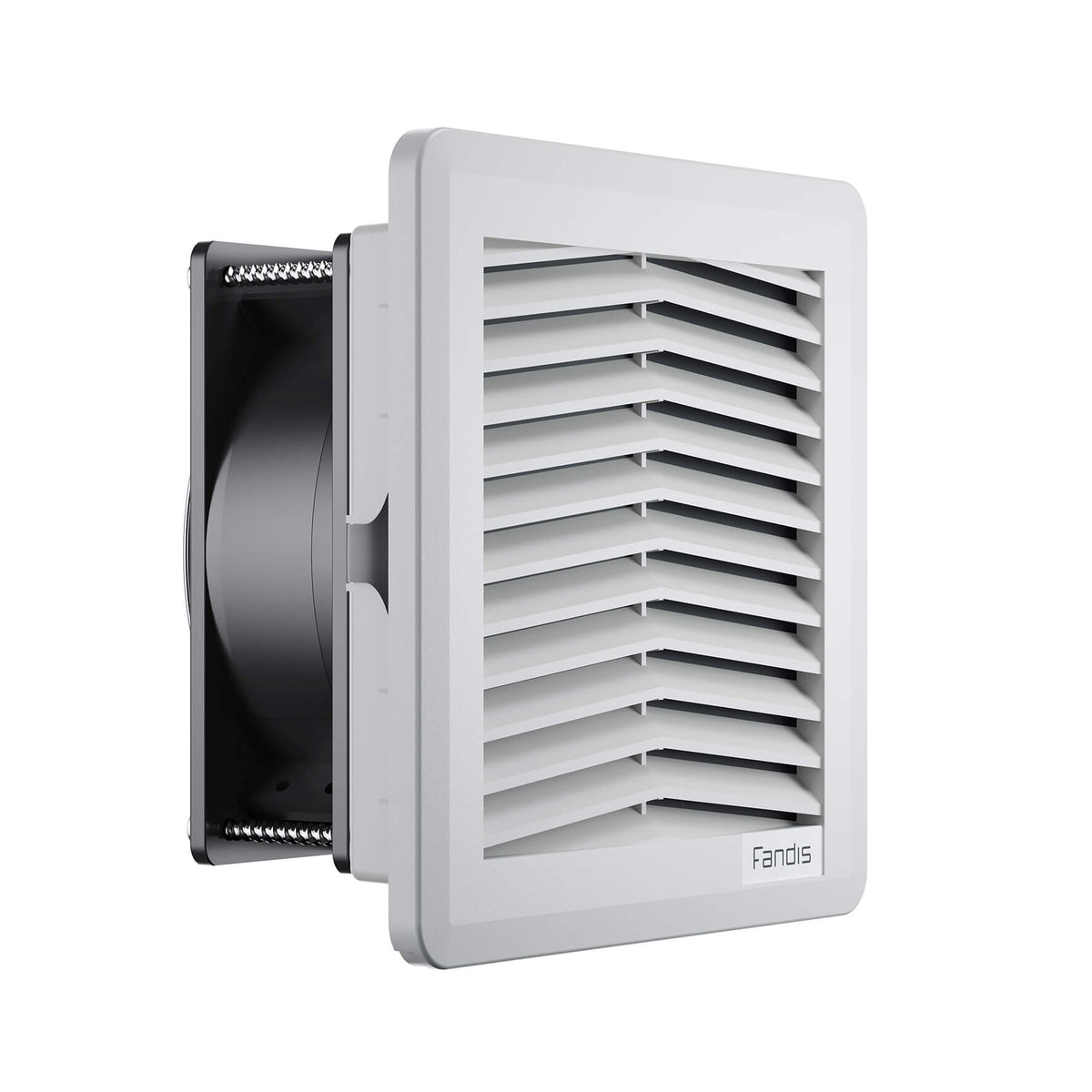

Fandis FF12A115UFR – FAN FILTER

Name: Fandis FF12A115UFR – FAN FILTER
Brand: Fandis
SKU: FF12A115UFR
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF12A115UFR
Approvals	CE; cURus; cULus; cCSAus; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Impedance Protected
Operating Voltage	85-125 V a.c.
Rated Current	0.2/0.18 A
Rated Power	16/15 W
Rated Voltage	115 V a.c.
IP Protection Degree	IP54
Operating Temperature	-10÷55 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Reverse
Casing Material	PC/ABS UL94 V-0
Electrical Connection	Screwless Terminal Block
Fan Noise	46/49 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	57000 h at 25 °C
RAL Number	7035
Spare Parts Filter Media	M12FPF-EU3
Wires Section	0.75-2.5 mm² 20-14 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1.3-3.2 mm
Airflow with Exhaust Filter	37/41 m³/h
Max Airflow	47/52 m³/h
Max Static Pressure	72/82 Pa
UL Environmental Type Rating	Type 1, 12
UL File Number Listed	E500932
UL File Number Recognized Component	E237844
UL Surrounding Temperature	55 °C
