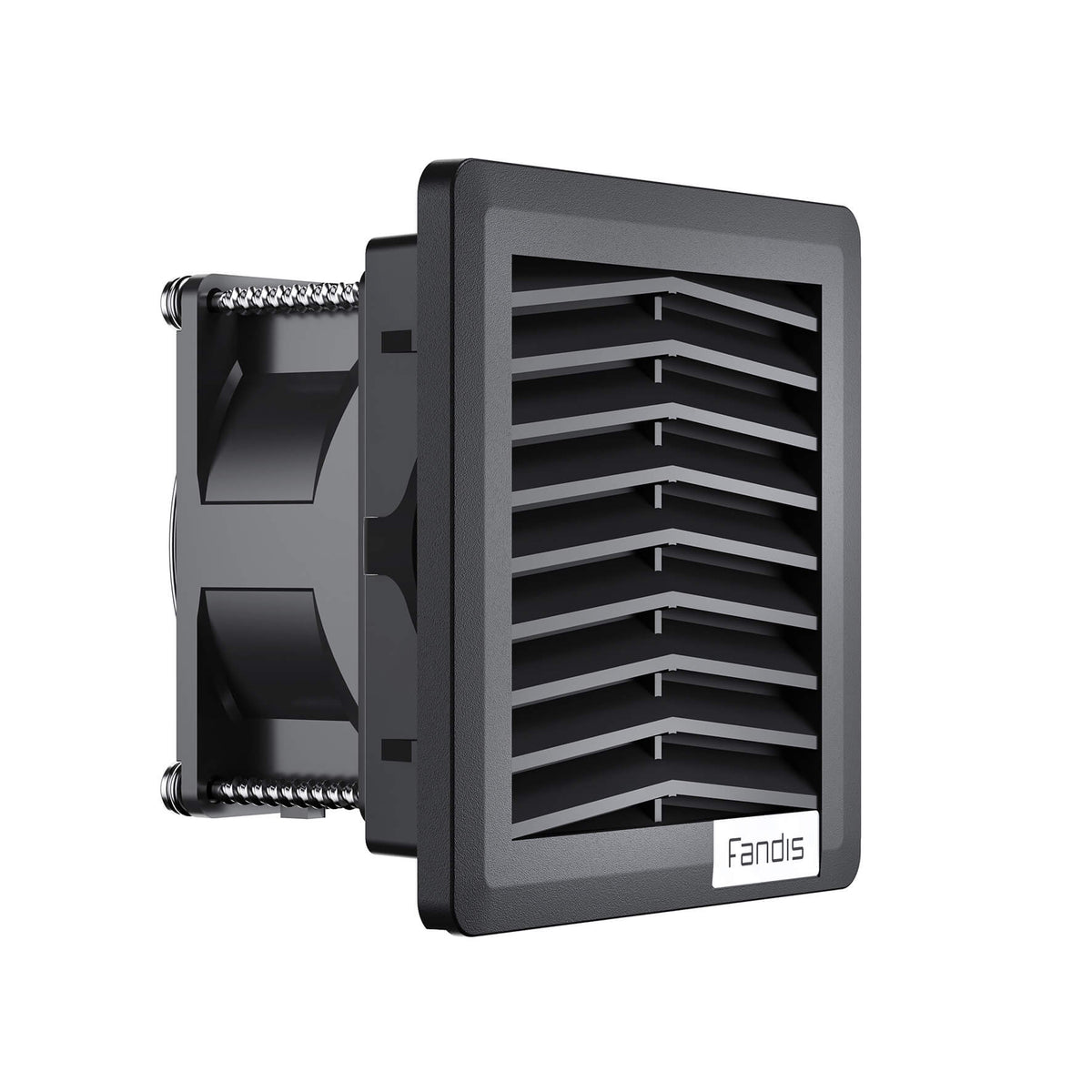

Fandis FF08D12NN3 – FAN FILTER 12Vd.c. RAL 9005 TYPE 3R

Name: Fandis FF08D12NN3 – FAN FILTER 12Vd.c. RAL 9005 TYPE 3R
Brand: Fandis
SKU: FF08D12NN3
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF08D12NN3
Approvals	CE; cURus; cULus; UKCA
Motor Protection	Electronically Protected
Operating Voltage	6-13.8 V d.c.
Rated Current	0.17 A
Rated Power	2 W
Rated Voltage	12 V d.c.
IP Protection Degree	IP54
Operating Temperature	-10÷55 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Direct
Cable Length	300 mm
Casing Material	PBT UL94 5VB
Electrical Connection	Wires
Fan Noise	30 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	100000 h at 25 °C
RAL Number	9005
Wires Section	26 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1-2 mm
Airflow with Exhaust Filter	11.5 m³/h
Max Airflow	16 m³/h
Max Static Pressure	28 Pa
UL Environmental Type Rating	Type 3R
UL File Number Listed	E500932
UL File Number Recognized Component	E237844
UL Surrounding Temperature	55 °C
