Fandis FF08A230UNR – FAN FILTER

Name: Fandis FF08A230UNR – FAN FILTER
Brand: Fandis
SKU: FF08A230UNR
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

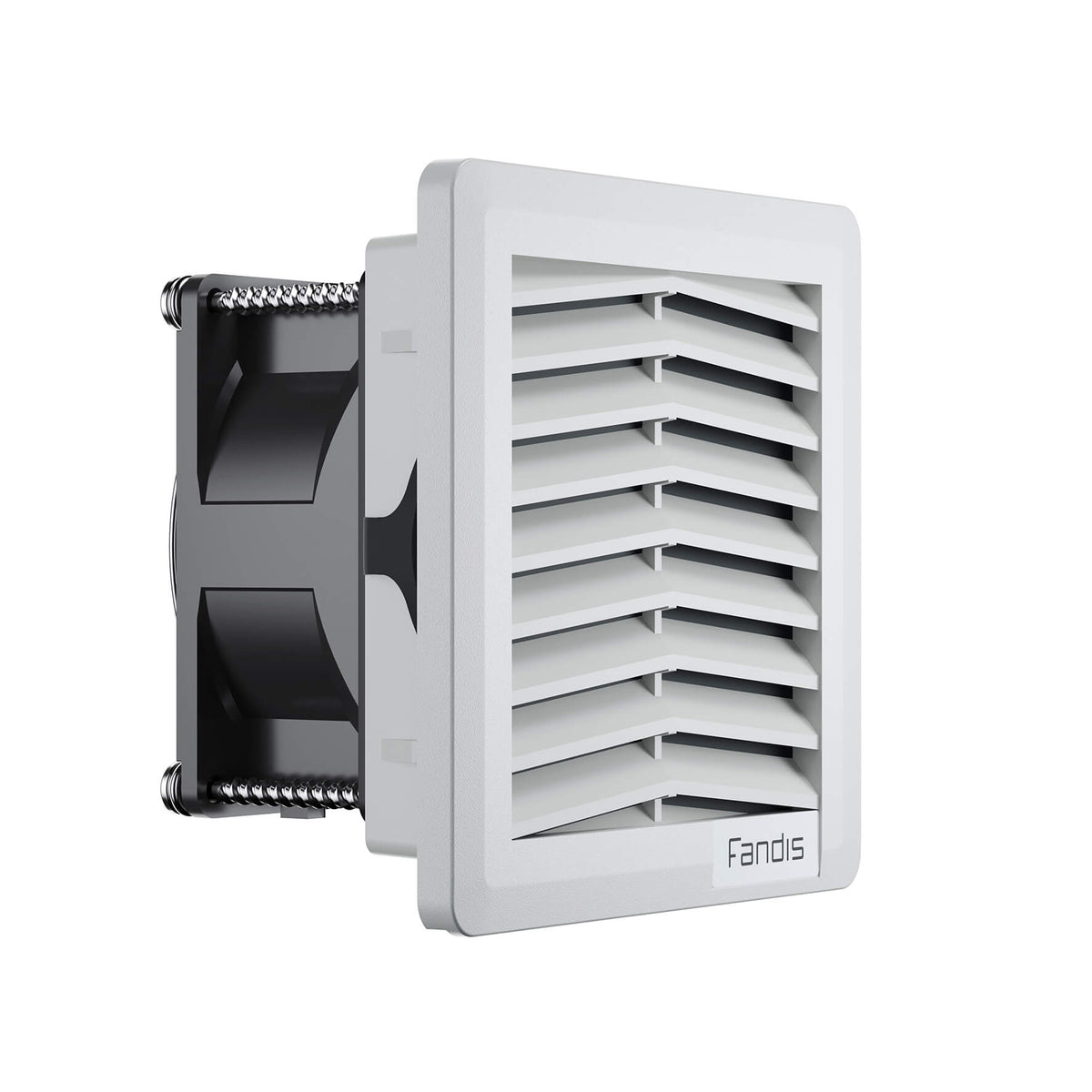

FF series exhaust filter and filter fans represents a side-mounted cooling solution with filtered ambient air to maintain optimum ventilation inside the electrical cabinets. Screwless connection, fast tool-free mounting system with clip and maintenance friendliness are the main benefits. Available in a wide range of configurations for both indoor and outdoor use.

Technical specifications

Manufacturer part number	FF08A230UNR
Approvals	CE; cURus; cULus; cCSAus; UKCA
Appliance Class	I
Frequency	50/60 Hz
Motor Protection	Impedance Protected
Operating Voltage	207-253 V a.c.
Rated Current	0.063/0.052 A
Rated Power	10/8 W
Rated Voltage	230 V a.c.
IP Protection Degree	IP54
Operating Temperature	-10÷55 °C
Storage Temperature	-40÷70 °C
Airflow Direction	Reverse
Cable Length	300 mm
Casing Material	PC/ABS UL94 V-0
Electrical Connection	Wires
Fan Noise	33/38 dB(A)
Filter Class	G3 EN 779 ISO coarse 55% ISO 16890
Filter Material	thermo-linked progressive structure synthetic fibre
Life Expectancy	50000 h at 20 °C
RAL Number	7035
Spare Parts Filter Media	M08FPF
Wires Section	22 AWG
Bearing	Ball Bearing
Mounting Wall Thickness	1-2 mm
Airflow with Exhaust Filter	13/15 m³/h
Max Airflow	16/21 m³/h
Max Static Pressure	45/64 Pa
UL Environmental Type Rating	Type 1, 12
UL File Number Listed	E500932
UL File Number Recognized Component	E237844
UL Surrounding Temperature	55 °C
