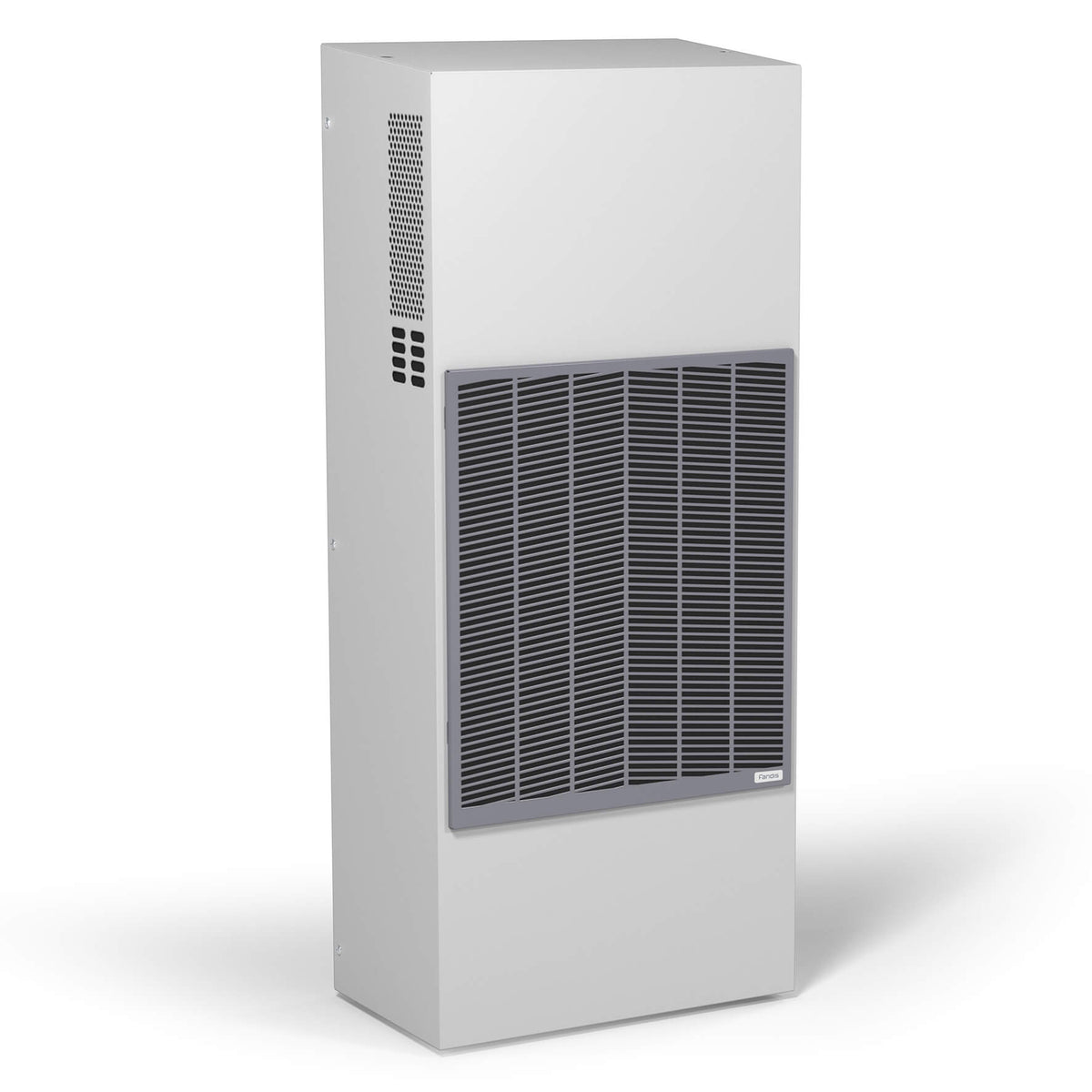

Fandis CCU40A403WNOUX – Outdoor Cooling Unit 4000W 400V/480V~3 RAL7035

Name: Fandis CCU40A403WNOUX – Outdoor Cooling Unit 4000W 400V/480V~3 RAL7035
Brand: Fandis
SKU: CCU40A403WNOUX
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

The CCU series wall-mounted cooling units represent an ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. The range of cooling units meets different indoor and outdoor application needs, ensuring high technical and safety standards. In all models, the polyurethane gasket is laid by machine, significantly reducing installation times.

Technical specifications

Manufacturer part number	CCU40A403WNOUX
Approvals	CE; UKCA
Factory Set Voltage	400 V a.c.
Frequency	50/60 Hz
Fuse T	8 A
Max Current	15 A
Rated Current	3.5 A at 380 V a.c. 3 ~ 50 Hz 3.3 A at 400 V a.c. 3 ~ 50 Hz 3.4 A at 440 V a.c. 3 ~ 60 Hz 3.3 A at 460 V a.c. 3 ~ 60 Hz 3.1 A at 480 V a.c. 3 ~ 60 Hz
Rated Power L35L35	1845/2045 W
Rated Power L35L50	2165/2545 W
Rated Voltage	380/400 V a.c. 3 ~ at 50 Hz 440/460/480 V a.c. 3 ~ at 60 Hz
Operating Temperature	-20÷55 °C
Protection Degree Enclosure Side	IP55
Casing Material	Painted Steel
CO2e	0.57 t
Electrical Connection	Connector
GWP	631
Maximum Allowable Pressure	HP 2.4/LP 0.6 MPa
RAL Number	7035
Refrigerant Charge	910 g
Refrigerant Number	R513A
Cooling Capacity L35L35	3995/4195 W
Cooling Capacity L35L50	2995/3145 W
