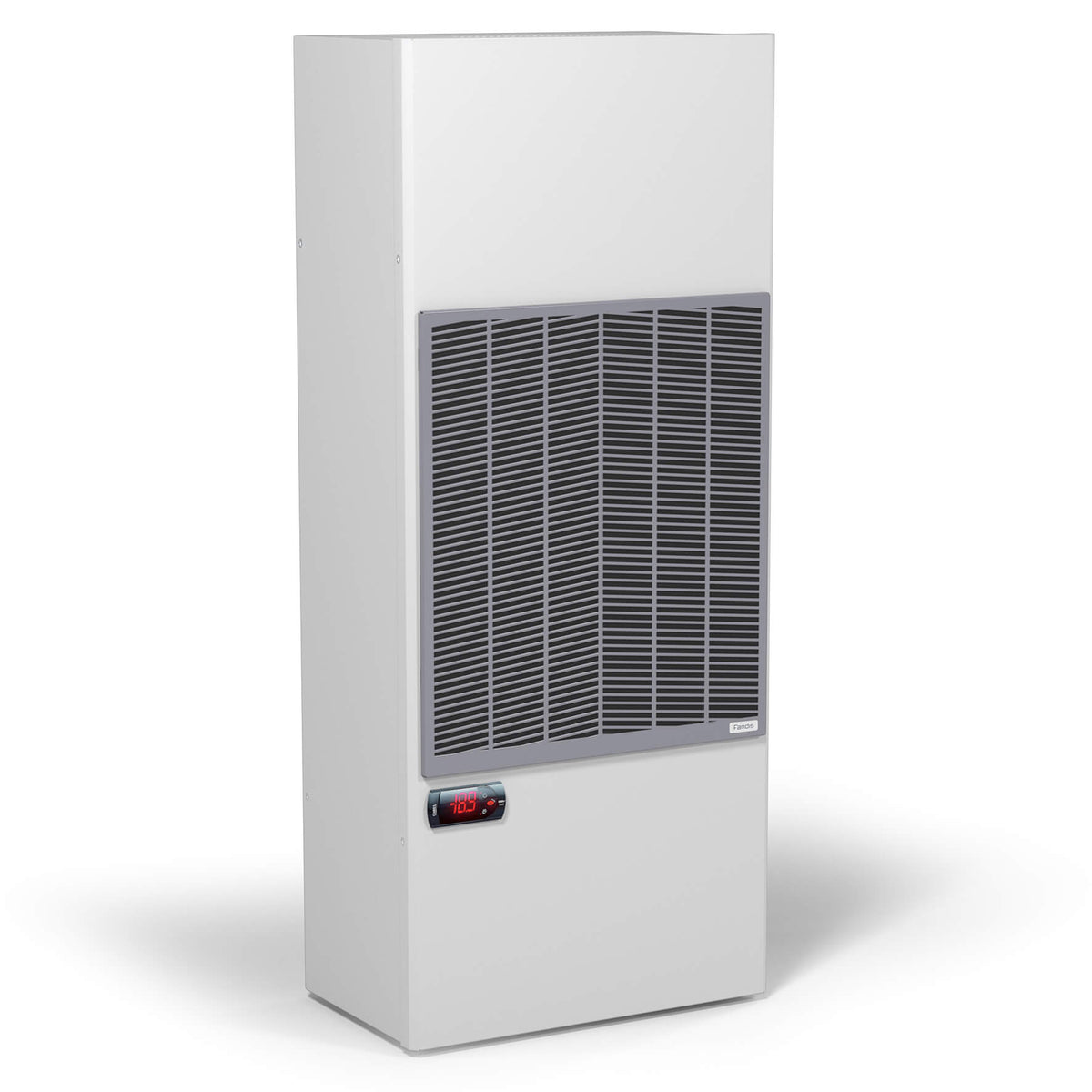

Fandis CCU30A403WSIUX – Indoor Cooling Unit 3000W 380/480V~3 RAL7035

Name: Fandis CCU30A403WSIUX – Indoor Cooling Unit 3000W 380/480V~3 RAL7035
Brand: Fandis
SKU: CCU30A403WSIUX
Availability: InStock

Price on request

Razprodano

Dostava se obračuna ob zaključku nakupa.

Request a price

The CCU series wall-mounted cooling units represent an ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. The range of cooling units meets different indoor and outdoor application needs, ensuring high technical and safety standards. In all models, the polyurethane gasket is laid by machine, significantly reducing installation times.

Technical specifications

Manufacturer part number	CCU30A403WSIUX
Approvals	CE; UKCA
Factory Set Voltage	400 V a.c.
Frequency	50/60 Hz
Fuse T	8 A
Max Current	12 A
Rated Current	2.8 A at 380 V a.c. 3 ~ 50 Hz 2.6 A at 400 V a.c. 3 ~ 50 Hz 2.7 A at 440 V a.c. 3 ~ 60 Hz 2.6 A at 460 V a.c. 3 ~ 60 Hz 2.5 A at 480 V a.c. 3 ~ 60 Hz
Rated Power L35L35	1095/1265 W
Rated Power L35L50	1255/1515 W
Rated Voltage	380/400 V a.c. 3 ~ at 50 Hz 440/460/480 V a.c. 3 ~ at 60 Hz
Operating Temperature	20÷50 °C
Protection Degree Enclosure Side	IP54
Casing Material	Painted Steel
Electrical Connection	Connector
Maximum Allowable Pressure	HP 2.4/LP 0.6 MPa
RAL Number	7035
Refrigerant Charge	850 g
Refrigerant Number	R513A
Cooling Capacity L35L35	2795/3075 W
Cooling Capacity L35L50	2235/2345 W
