SALTEK
SKU:A06057
DM-006/1-RB
DM-006/1-RB
Price on request
Shipping calculated at checkout.

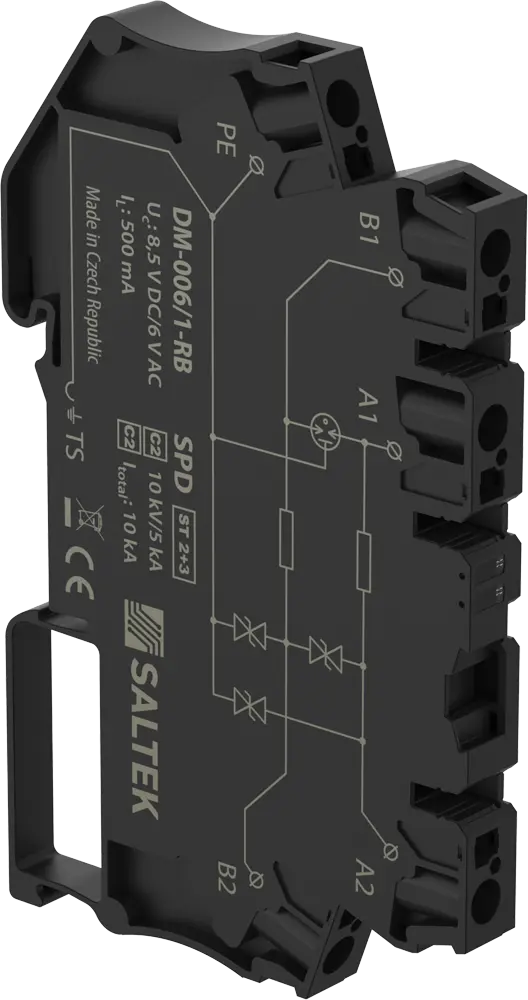

SALTEK DM-006/1-RB — Coupling impedance (resistance), screwless terminals, coarse and fine surge protection for 2-core signalling networks, installation close to protected equipment, for protection of communication interfaces, mainly the RS-485 lines, of I&C, electronic security and fire detection systems, etc. against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and common mode (core – PE).
Technical specifications
| SALTEK order number | A06057 |
|---|---|
| EAN | 8595090560579 |
| Nominal voltage | 6 V |
| Maximum operating voltage | 6 V AC |
| Maximum operating voltage (DC) | 8.5 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 1 MHz |
| ETIM class | EC000943 |
| Net weight | 35 g |
| Packing dimensions | 124 × 82 × 25 mm |
