Pizzato
SKU:ST DD821N10-E1T
ST DD821N10-E1T
ST DD821N10-E1T
Availability: Ships in 2–3 weeks
Couldn't load pickup availability

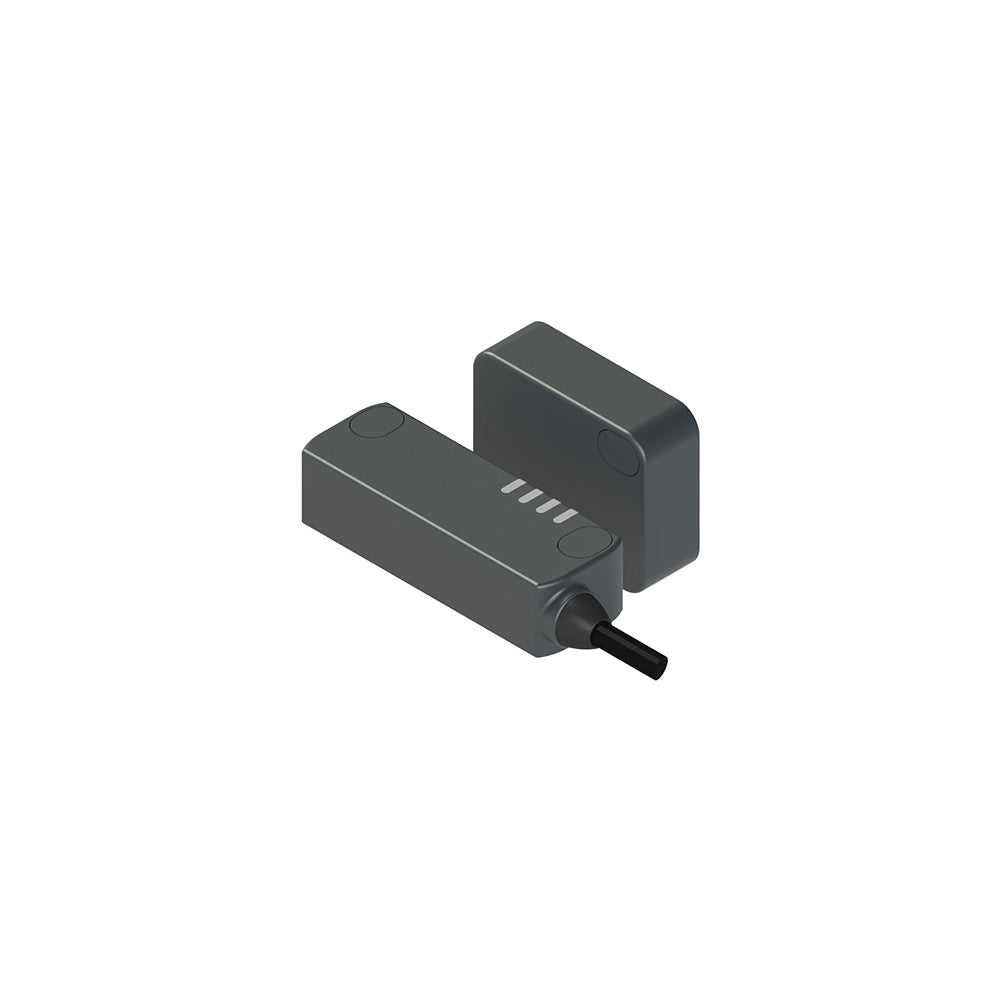

ST D series safety sensor, Housing: Technopolymer housing with output connection from right, ST D series, Power: 10 ... 30 Vdc, Type of cable or connector: PVC cable, Actuator coding level: High coding level, Actuator actuation distance: Actuation distance 20 mm, Actuator design: Dimensions 40x50x16 mm, front fixing (E), Ambient temperature: From -25 to +70 °C, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653.
Technical specifications
| Manufacturer part number | ST DD821N10-E1T |
|---|---|
| EAN | 8018851502101 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | ST D/E/L - SM D/E/L RFID sensors |
| ETIM class | EC002544 |
