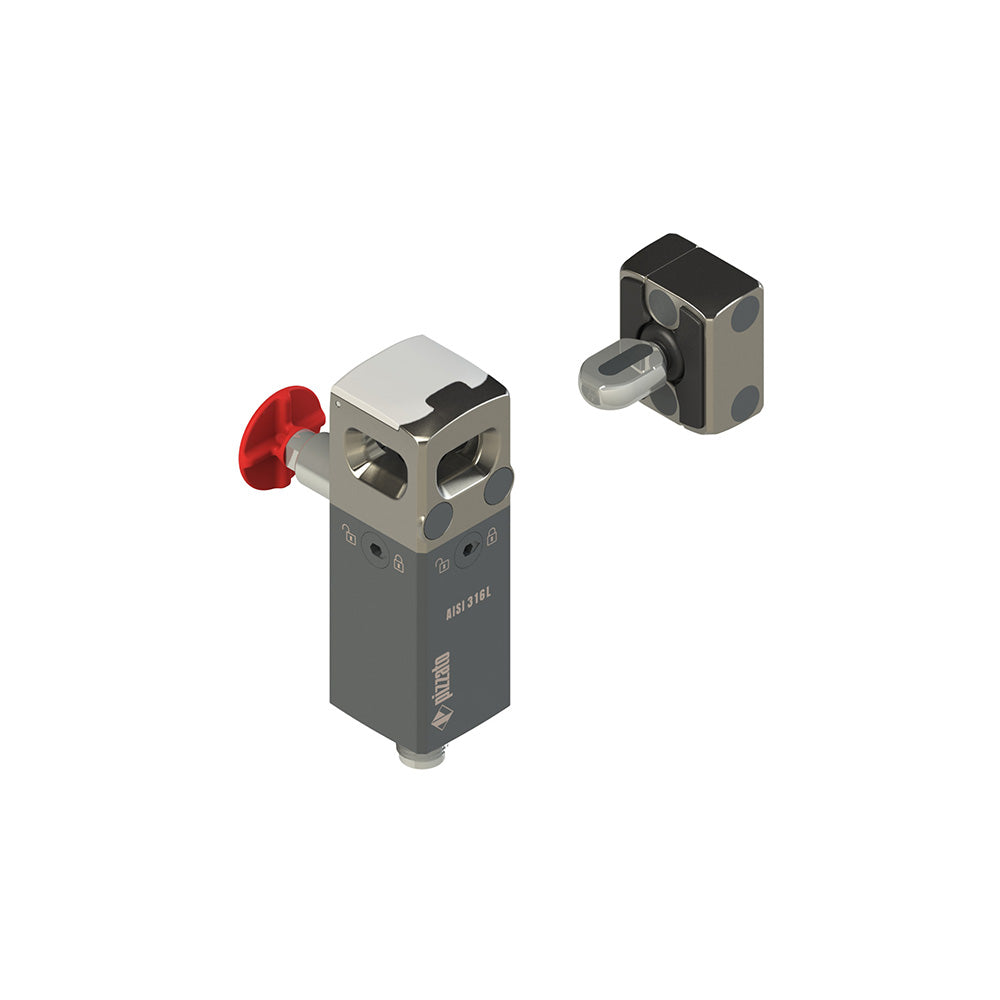

NX B52CE2SMK-F71

NX series RFID safety switch with lock with metal parts in AISI 316L stainless steel, Type of operation: Mode 1 of bistable solenoid. Activation of OS1 and OS2 with inserted and locked actuator., Inputs and outputs: 2 safety inputs IS1, IS2; 2 safety outputs OS1, OS2; 1 signalling output O3: actuator inserted; 1 signalling output O4: actuator locked; 2 inputs for solenoid activation IE1, IE2; 1 programming / reset input I3; 1 feedback input EDM I5, Actuator recognition: Reprogrammable actuator, Auxiliary release: Release with hexagonal key on three sides and escape release button at back, Type of integrated cable or connector: M12 connector, 12-pole, Actuator: Complete with actuator with high coding level and parts in stainless steel VN NX-F71, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Cover: RGB-LED (illuminated) cover with multicolour signalling.

Technical specifications

Documentation

• English catalogue / technical documentation 1
