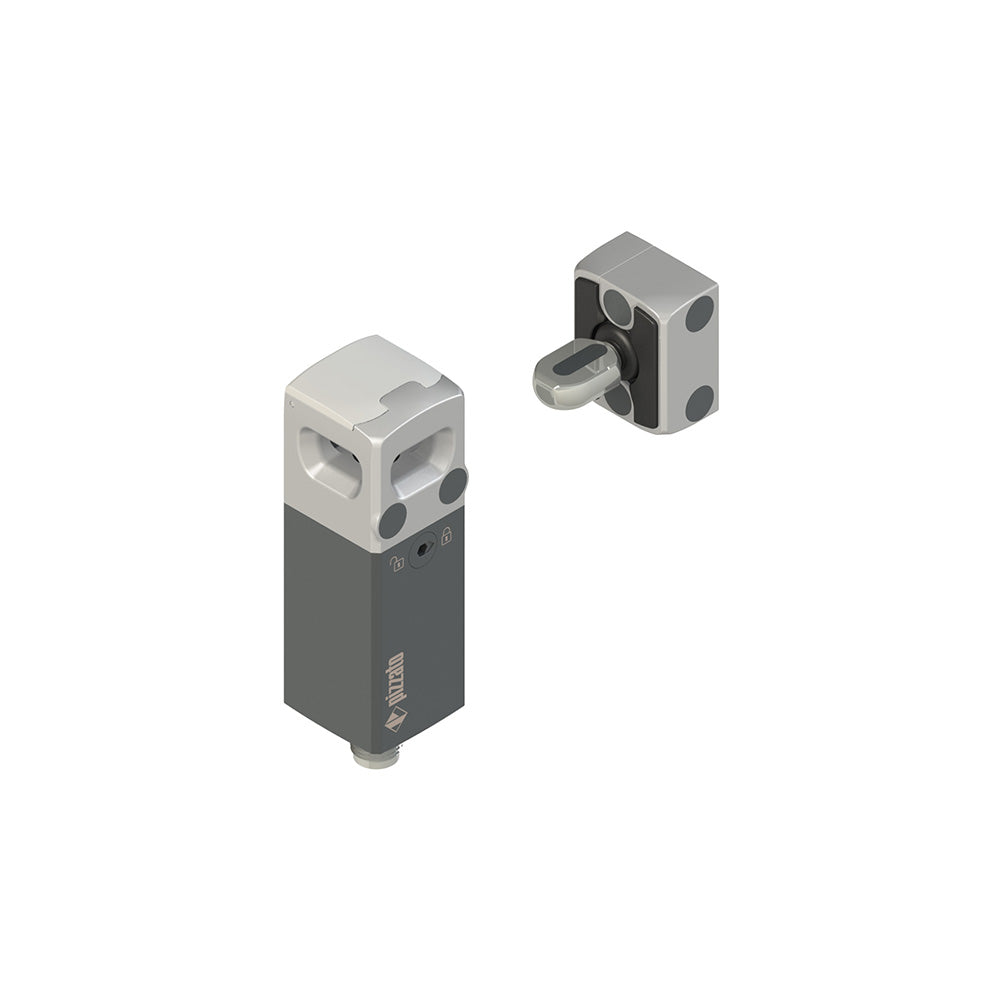

NX B42AZ1SPK-F60

NX series RFID safety switch with lock, Type of operation: Mode 1 of bistable solenoid. Activation of OS1 and OS2 with inserted and locked actuator., Inputs and outputs: 2 safety outputs OS1, OS2; 1 signalling output O3: actuator inserted; 2 inputs for solenoid activation IE1, IE2; 1 programming / reset input I3, Actuator recognition: Reprogrammable actuator, Auxiliary release: Release with hexagonal key at front, Type of integrated cable or connector: M12 connector, 8-pole, for stand-alone connections, Actuator: Complete with universal actuator with low coding level VN NX-F60, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Cover: RGB-LED (illuminated) cover with multicolour signalling.

Technical specifications

Documentation

• English catalogue / technical documentation 1
