Pizzato
SKU:NF G122KC-DN2
NF G122KC-DN2
NF G122KC-DN2
Availability: Ships in 2–3 weeks
Couldn't load pickup availability

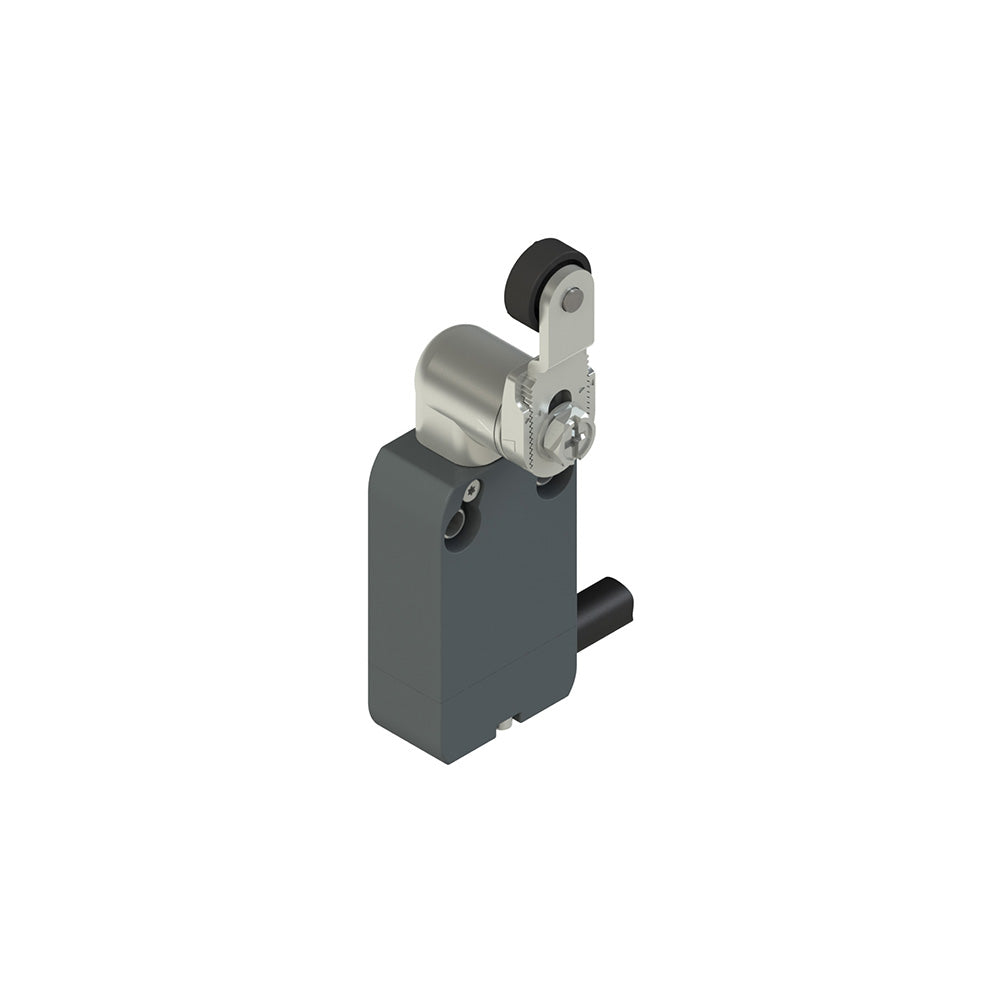

Modular prewired switch with adjustable shaped metal revolving lever diam. 14 roller, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Technopolymer housing, 20 mm fixing points, Contact block: 1NO+2NC slow action (G12), Head: Metal head for actuators with revolving lever, Kind of connection: Technopolymer connector 1NO+2NC, Cable: PVC 6x0,5 mm?, lenght 2 m, 6 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NF G122KC-DN2 |
|---|---|
| EAN | 8018851149429 |
| Minimum order quantity | 1 |
| Weight | 256 g |
| Customs tariff number | 85369095 |
| Product range | NF |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Need help selecting components?
Talk to our team for expert guidance and product recommendations.
