Pizzato
SKU:NB B222LL-DN2
NB B222LL-DN2
NB B222LL-DN2
Availability: Ships in 2–3 weeks
Couldn't load pickup availability

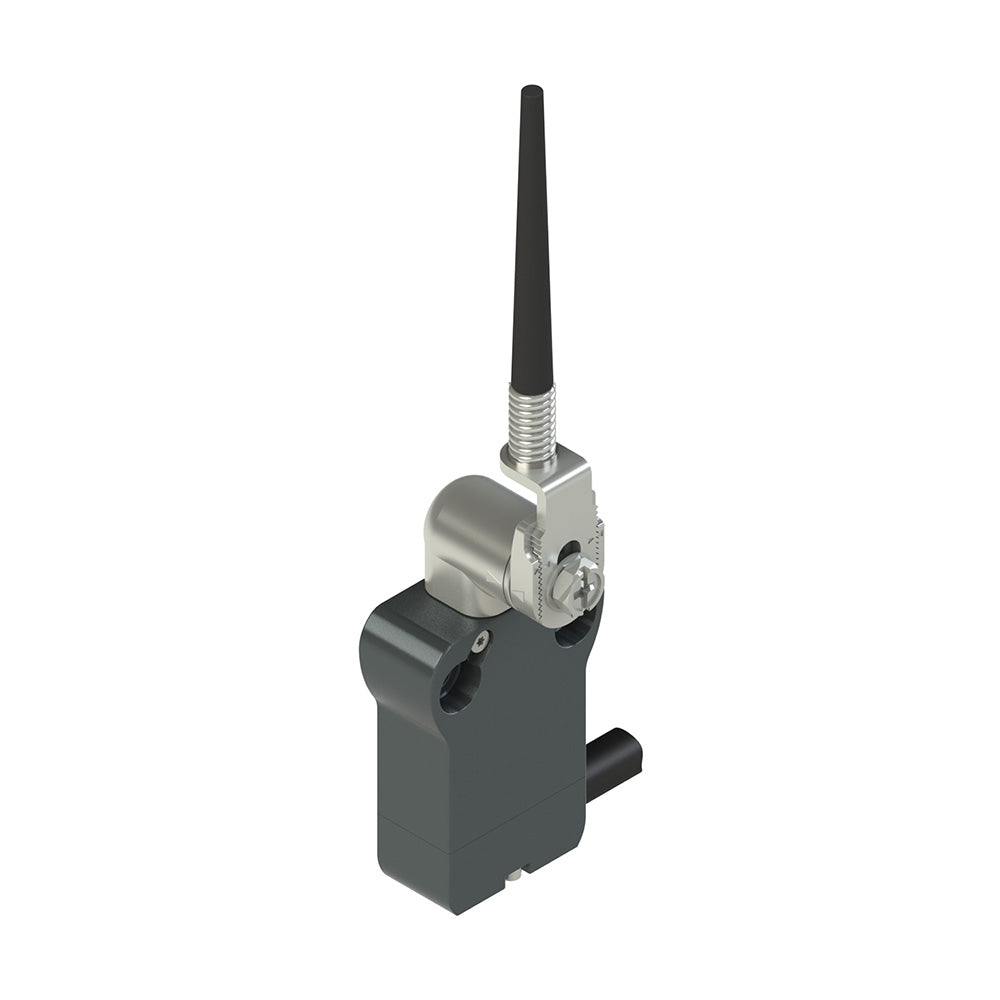

Modular prewired switch with metal revolving lever with flexible adjustable rod, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 25 mm fixing points, Contact block: 2NO+2NC snap action (B22), Head: Metal head for actuators with revolving lever, Kind of connection: Metal connector 2NO+2NC, Cable: PVC 9x0,34 mm?, lenght 2 m, 9 wires.
Technical specifications
| Manufacturer part number | NB B222LL-DN2 |
|---|---|
| EAN | 8018851187018 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
