Pizzato
SKU:NA L110EB-DN2
NA L110EB-DN2
NA L110EB-DN2
Availability: Ships in 2–3 weeks
Couldn't load pickup availability

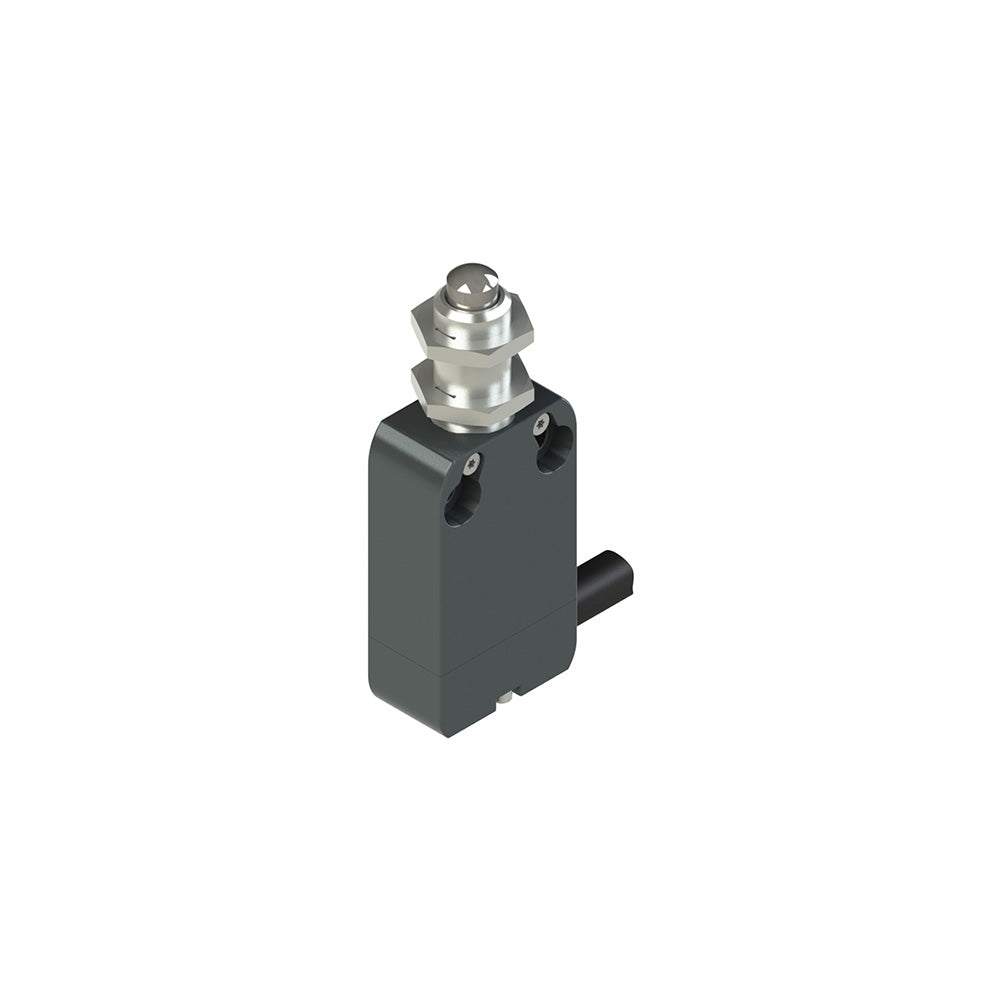

Modular prewired switch with plunger with M12 threaded bearing, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 20 mm fixing points, Contact block: 1NO+1NC slow action closer (L11), Head: Plunger with M12 threaded bearing, Kind of connection: Metal connector 1NO+1NC, Cable: PVC 5x0,75 mm?, lenght 2 m, 5 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NA L110EB-DN2 |
|---|---|
| EAN | 8018851149047 |
| Minimum order quantity | 1 |
| Weight | 323 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
