Pizzato
SKU:NA G112KD-DN1
NA G112KD-DN1
NA G112KD-DN1
Availability: Ships in 2–3 weeks
Couldn't load pickup availability

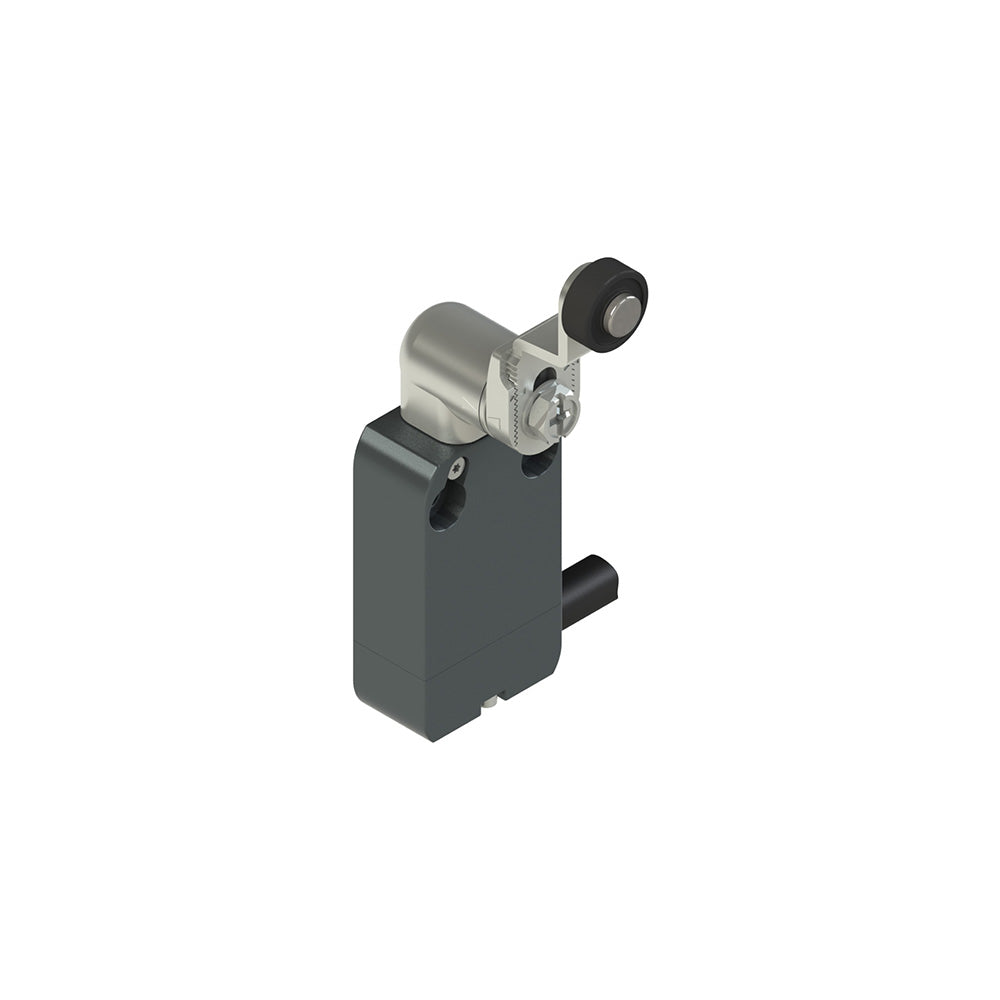

Modular prewired switch with adjustable shaped metal revolving lever diam. 14 roller, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Housing: Metal housing, 20 mm fixing points, Contact block: 1NO+1NC slow action (G11), Head: Metal head for actuators with revolving lever, Kind of connection: Metal connector 1NO+1NC, Cable: PVC 5x0,75 mm?, lenght 1 m, 5 wires, Positive opening: Yes.
Technical specifications
| Manufacturer part number | NA G112KD-DN1 |
|---|---|
| EAN | 8018851203121 |
| Minimum order quantity | 1 |
| Weight | 249 g |
| Customs tariff number | 85369095 |
| Product range | NA - NB |
| ETIM class | EC000030 |
