Pizzato
SKU:FX 2231
FX 2231
FX 2231
Regular price
€16,49 EUR
Regular price
Sale price
€16,49 EUR
Shipping calculated at checkout.
Availability: Ships in 2–3 weeks
Quantity
Couldn't load pickup availability

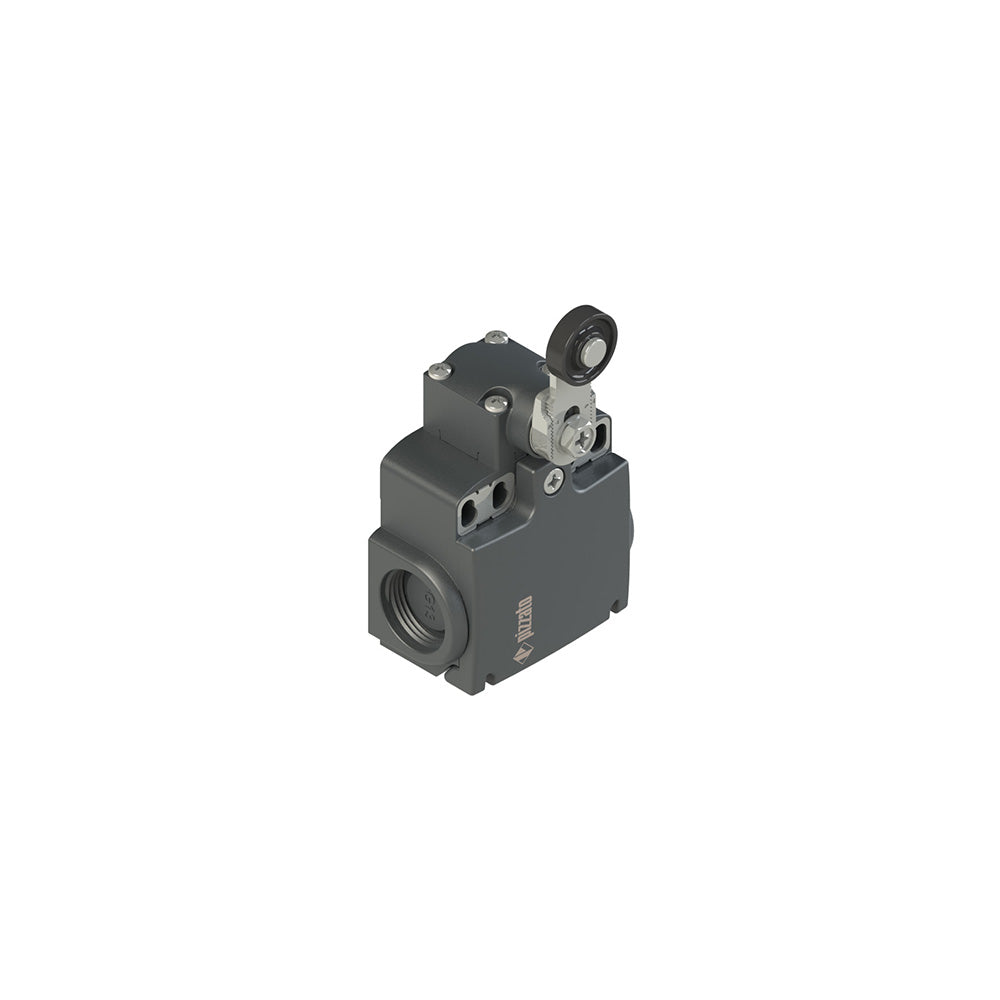

Position switch with roller lever, Housing: Technopolymer housing, two knock-out threaded conduit entries PG 13,5 (FX series), Contact block: 2NO+1NC slow action (B22), Head: Regular head for rotating levers , Actuator: Lever with technopolymer roller, 18 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FX 2231 |
|---|---|
| EAN | 8018851046339 |
| Minimum order quantity | 1 |
| Weight | 114 g |
| Customs tariff number | 85369095 |
| Product range | FX |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
