Pizzato
SKU:FS 1896D024-F3
FS 1896D024-F3
FS 1896D024-F3
Couldn't load pickup availability

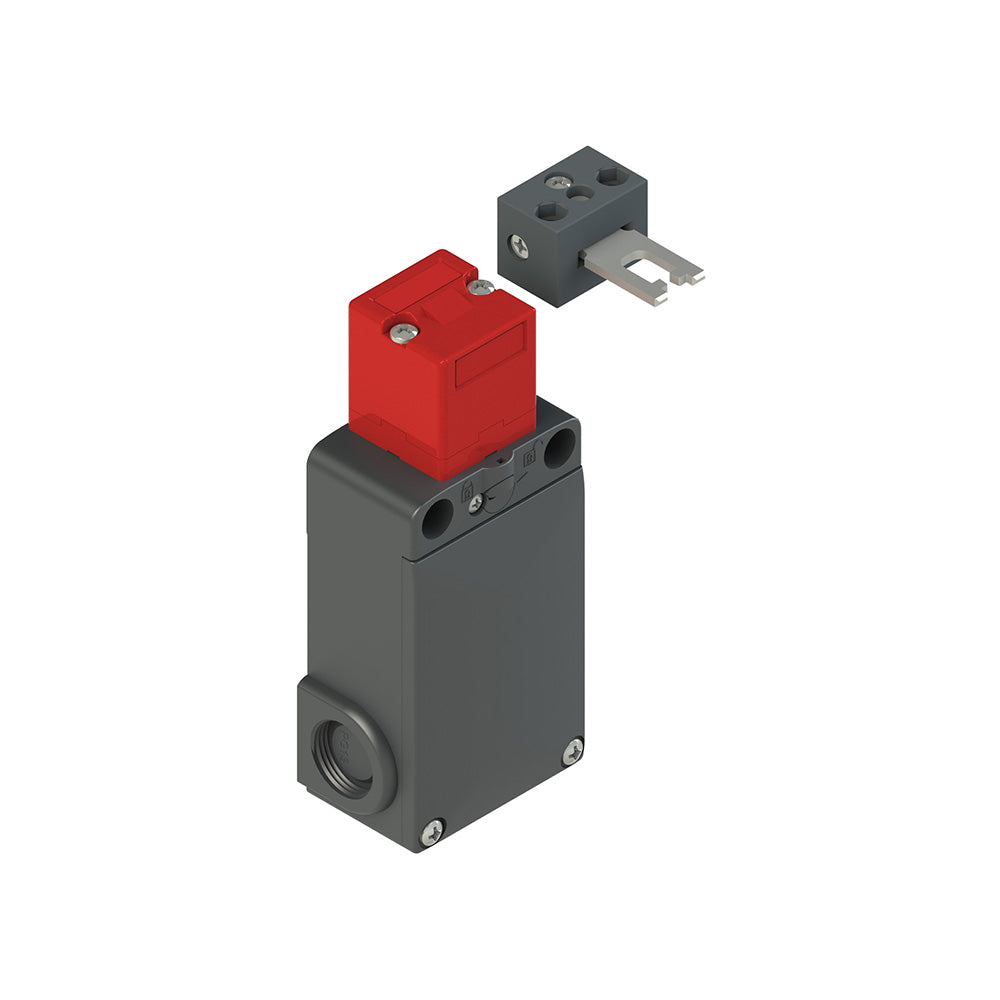

FS series safety switch with separate actuator with lock, Protection degree: IP67 according to EN 60529, Power: 24 Vac/dc (D working method), Housing: Technopolymer housing, three threaded PG 13,5 conduit entries, Contact block: 1NO+1NC moved by solenoid, Head: Rotating head, Working method: D working method, locked actuator with de-energized solenoid, Actuator: Adjustable in two directions, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FS 1896D024-F3 |
|---|---|
| EAN | 8018851098130 |
| Minimum order quantity | 1 |
| Weight | 438 g |
| Customs tariff number | 85369095 |
| Product range | FS switches with solenoid |
| ETIM class | EC002593 |
