Pizzato
SKU:FR 656-M2R19
FR 656-M2R19
FR 656-M2R19
Availability: Ships in 2–3 weeks
Couldn't load pickup availability

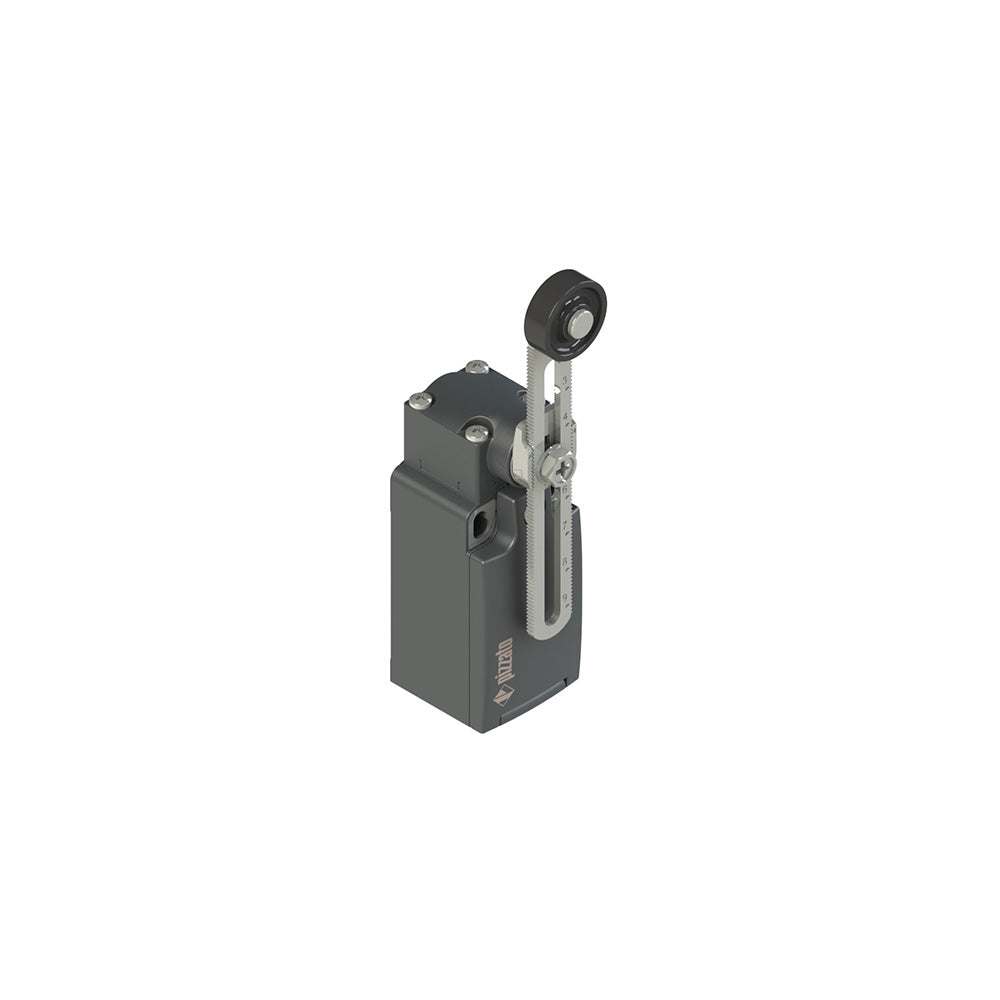

Position switch with adjustable roller lever, Housing: Technopolymer housing, one threaded M20x1,5 conduit entry (FR series), Contact block: 1NO+1NC slow action (B6), Head: Regular head for rotating levers , Actuator: Adjustable safety lever with technopolymer roller, 20 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 656-M2R19 |
|---|---|
| EAN | 8018851126499 |
| Minimum order quantity | 1 |
| Weight | 0 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
