Pizzato
SKU:FR 530-K70
FR 530-K70
FR 530-K70
Regular price
€17,61 EUR
Regular price
Sale price
€17,61 EUR
Shipping calculated at checkout.
Availability: Ships in 2–3 weeks
Quantity
Couldn't load pickup availability

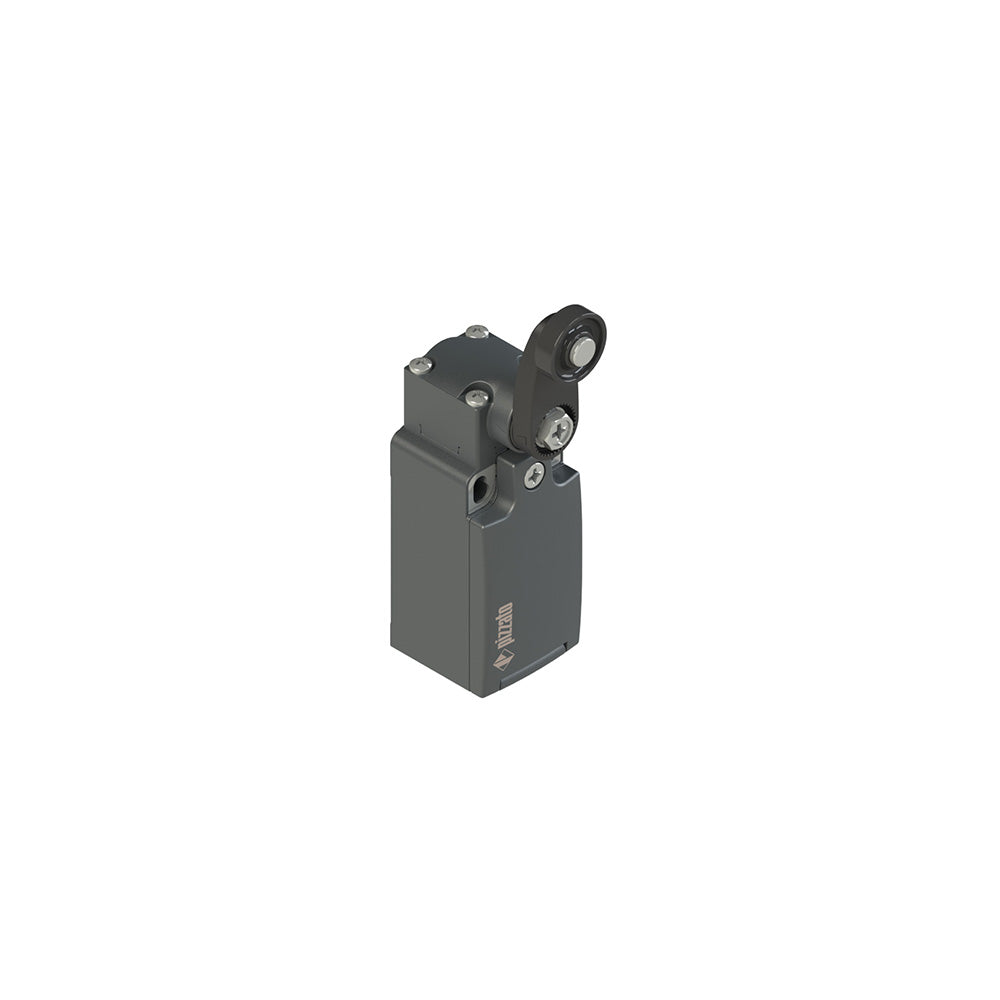

Position switch with roller lever, Housing: Technopolymer housing, one threaded PG 13,5 conduit entry (FR series), Contact block: 1NO+1NC snap action (B5), Head: Regular head for rotating levers , Actuator: Rotating plastic lever with technopolymer roller, 18 mm diameter, Protection degree: IP67 according to EN 60529 and IP69K according to ISO 20653, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FR 530-K70 |
|---|---|
| EAN | 8018851061936 |
| Minimum order quantity | 1 |
| Weight | 97 g |
| Customs tariff number | 85369095 |
| Product range | FR |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
