Pizzato
SKU:FG 60XD1D0B
FG 60XD1D0B
FG 60XD1D0B
Availability: Ships in 2–3 weeks
Couldn't load pickup availability

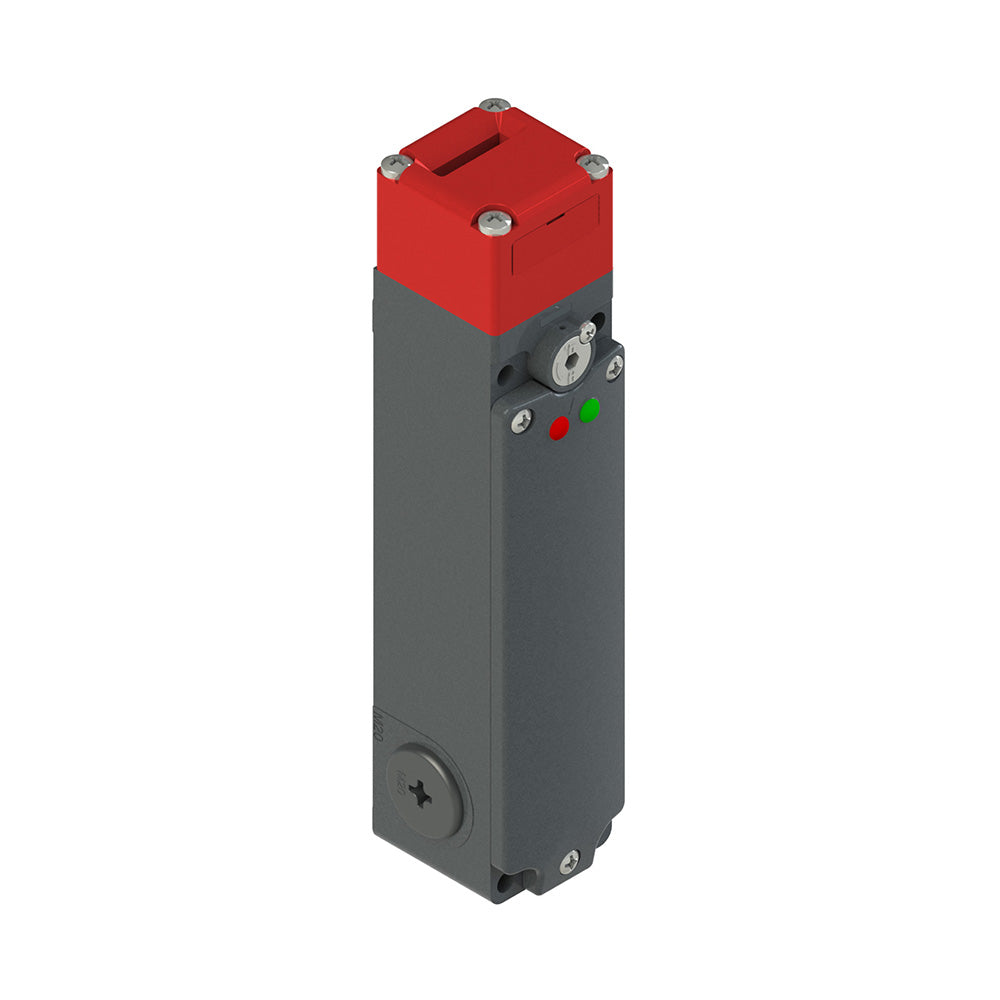

FG series safety switch with separate actuator with lock, Working method: D working method, locked actuator with de-energized solenoid, Protection degree: IP67 according to EN 60529 with cable gland having equal or higher protection degree, Housing: Metal housing, three M20x1,5 cable entries, Contact block: 3NC moved by actuator and 1NO moved by solenoid, Head: Rotating head, Power: 24 Vac/dc, LED: 1 green LED + 1 red LED freely linkable by user, Actuator: Without actuator , Positive opening: Yes.
Technical specifications
| Manufacturer part number | FG 60XD1D0B |
|---|---|
| EAN | 8018851308758 |
| Minimum order quantity | 1 |
| Weight | 1089 g |
| Customs tariff number | 85369095 |
| Product range | FG switches with solenoid |
| ETIM class | EC002593 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
