Pizzato
SKU:FG 60VD1E0A-F28
FG 60VD1E0A-F28
FG 60VD1E0A-F28
Availability: Ships in 2–3 weeks
Couldn't load pickup availability

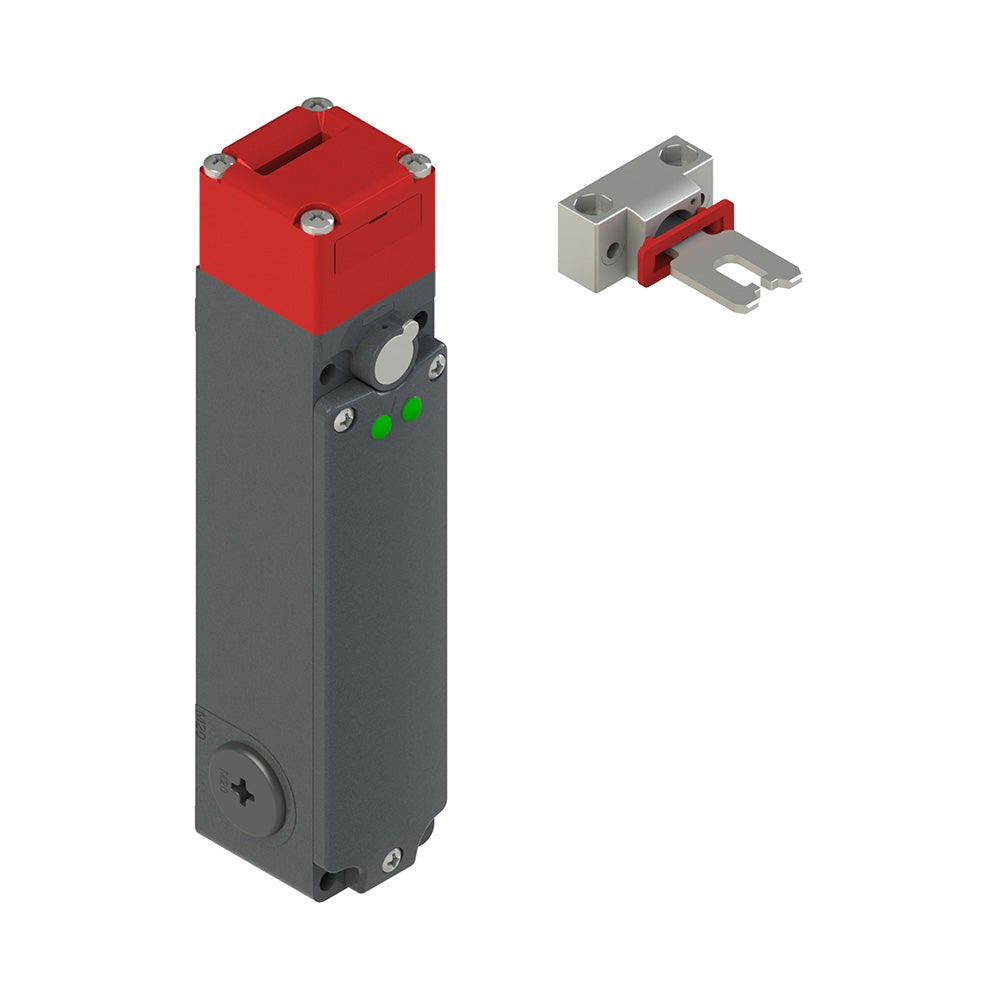

FG series safety switch with separate actuator with lock, Working method: E working method, locked actuator with energized solenoid, Housing: Metal housing, three M20x1,5 cable entries, Contact block: 2NO moved by actuator and 2NC moved by solenoid, Head: Rotating head, Power: 24 Vac/dc, LED: 2 green LED switched-on by the solenoid power supply, Actuator: Complete with universal actuator VF KEYF28, Positive opening: Yes.
Technical specifications
| Manufacturer part number | FG 60VD1E0A-F28 |
|---|---|
| EAN | 8018851625114 |
| Minimum order quantity | 1 |
| Weight | 1147 g |
| Customs tariff number | 85369095 |
| Product range | FG switches with solenoid |
| ETIM class | EC002593 |
