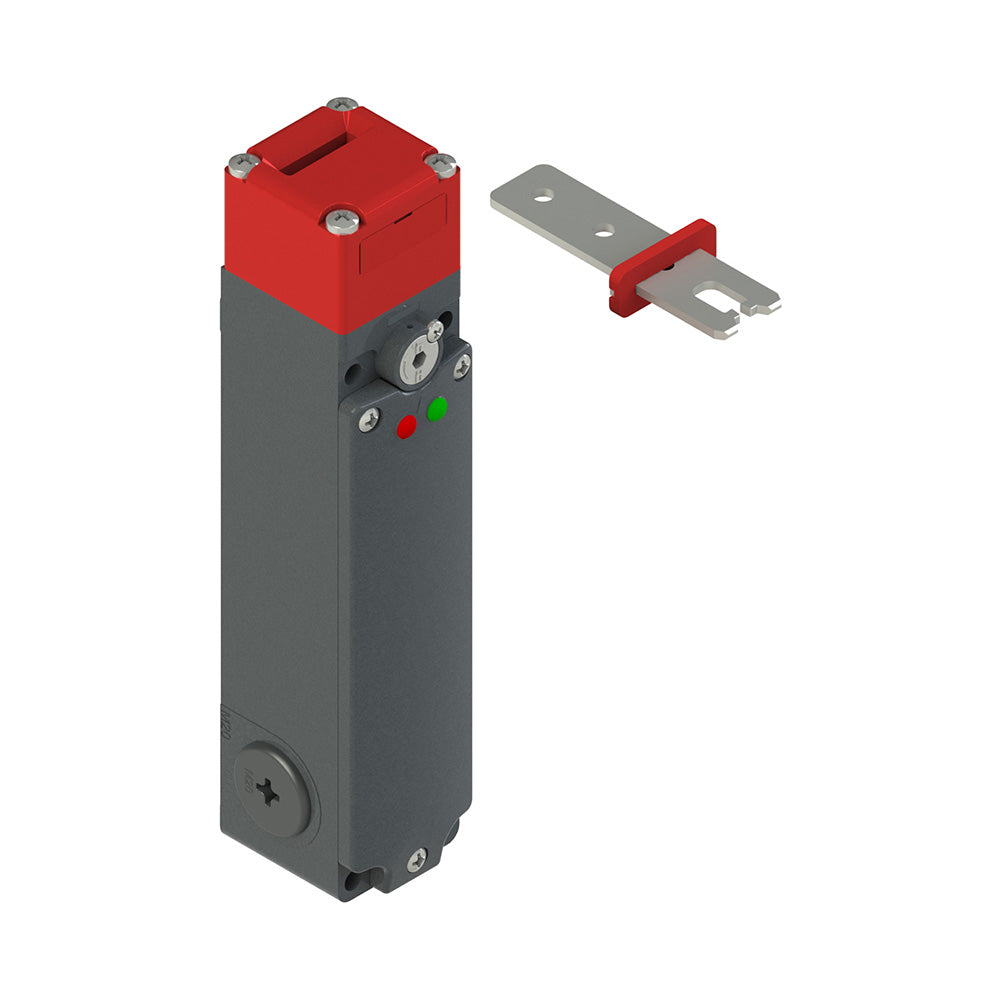

FG 60AD1D0B-F20

FG series safety switch with separate actuator with lock, Working method: D working method, locked actuator with de-energized solenoid, Protection degree: IP67 according to EN 60529 with cable gland having equal or higher protection degree, Housing: Metal housing, three M20x1,5 cable entries, Contact block: 1NO+1NC moved by actuator and 1NO+1NC moved by solenoid, Head: Rotating head, Power: 24 Vac/dc, LED: 1 green LED + 1 red LED freely linkable by user, Actuator: Complete with straight actuator VF KEYF20, Positive opening: Yes.

Technical specifications

Documentation

• English catalogue / technical documentation 1
