Pizzato
SKU:FD 233
FD 233
FD 233
Regular price
€27,62 EUR
Regular price
Sale price
€27,62 EUR
Shipping calculated at checkout.
Availability: Ships in 2–3 weeks
Quantity
Couldn't load pickup availability

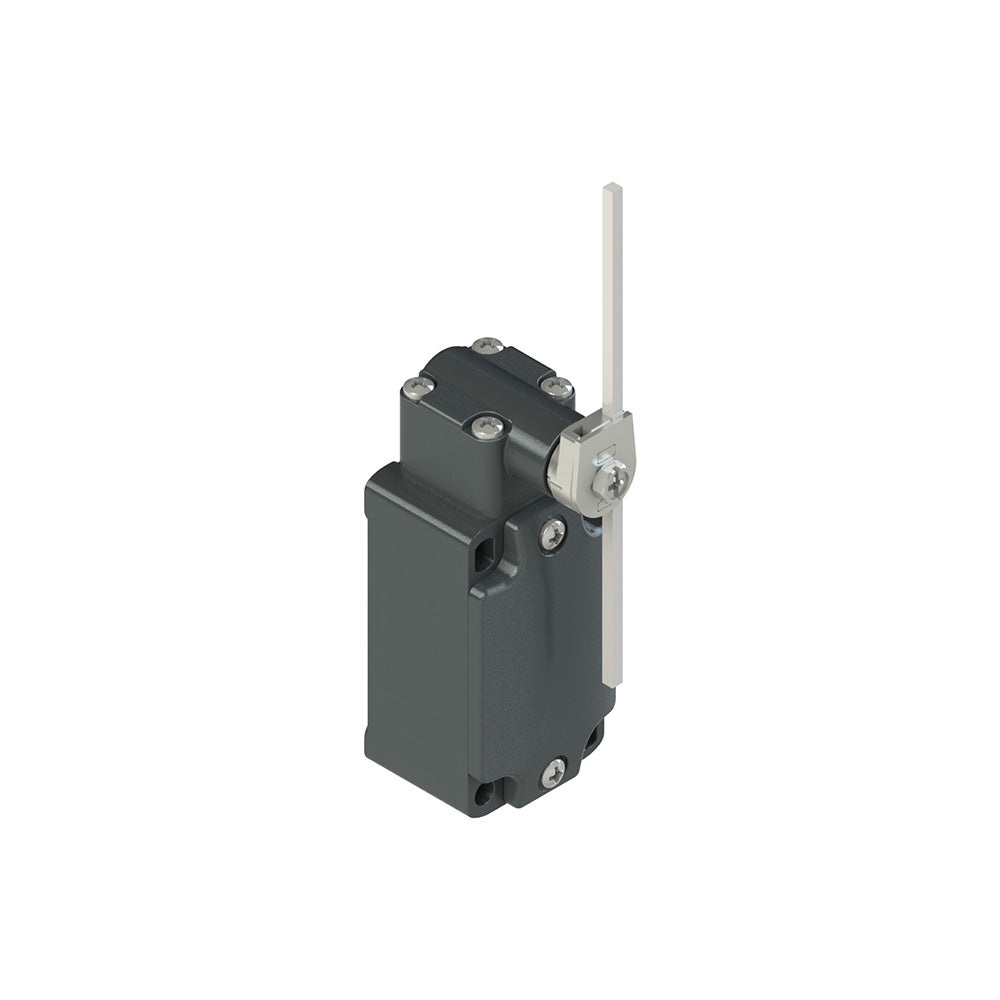

Position switch with adjustable square rod lever, Housing: Metal housing, one threaded PG 13,5 conduit entry (FD series), Contact block: 2x(1NO-1NC) snap action (B2), Head: Regular head for rotating levers , Actuator: With adjustable square stainless steel rod lever, 3x3x125 mm, Protection degree: IP67 according to EN 60529.
Technical specifications
| Manufacturer part number | FD 233 |
|---|---|
| EAN | 8018851007491 |
| Minimum order quantity | 1 |
| Weight | 407.8 g |
| Customs tariff number | 85369095 |
| Product range | FD |
| ETIM class | EC000030 |
Documentation
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
Pizzato Elettrica
