Pizzato
SKU:BN AC6ZA36
BN AC6ZA36
BN AC6ZA36
Availability: Ships in 2–3 weeks
Couldn't load pickup availability

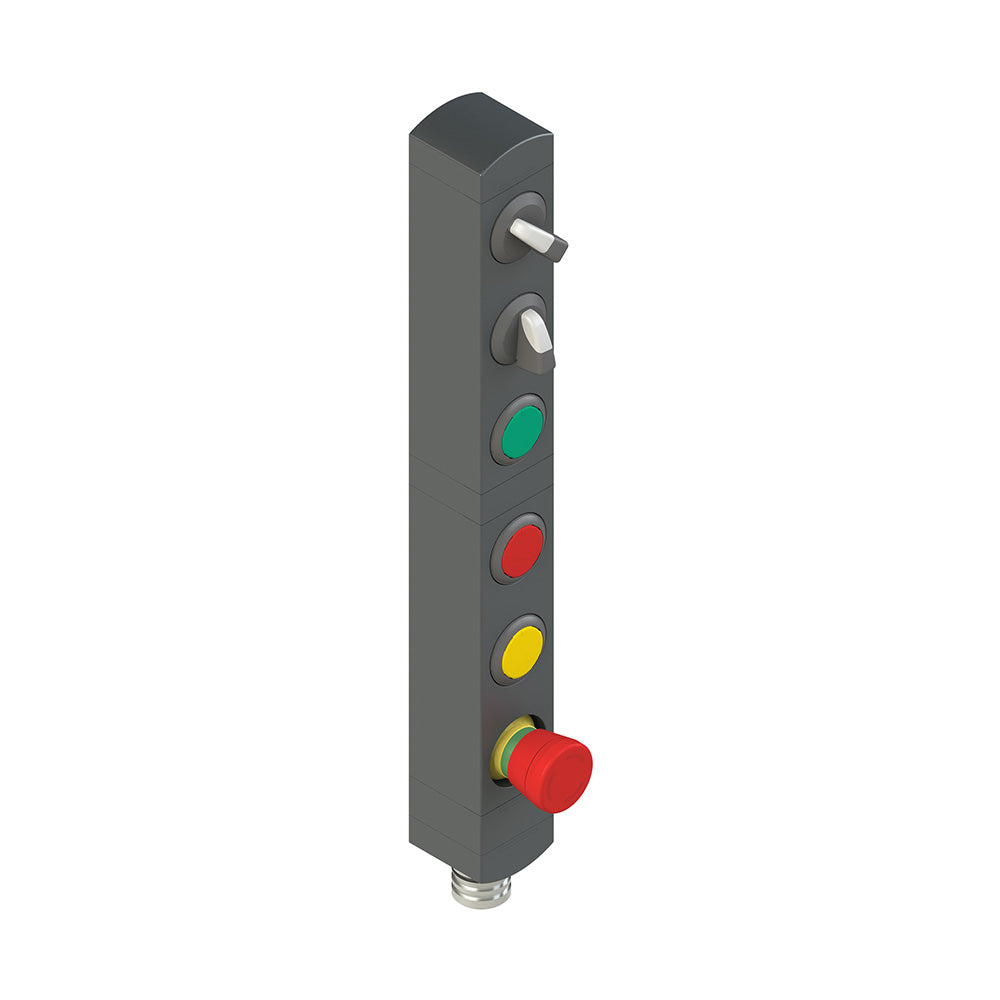

BN series control device unit, Number of devices: 6 devices, Position 1: 2-position selector switch 2NO , Position 2: 3-position selector switch 2NO, Position 3: 1 pushbutton green 1NO, Position 4: 1 pushbutton red 1NC, Position 5: 1 pushbutton yellow 1NO, Position 6: 1 red emergency stop button, turn to release, 2NC , Protection degree: IP65 according to EN 60529, Connection and output direction: M23 connector, 19-pole.
Technical specifications
| Manufacturer part number | BN AC6ZA36 |
|---|---|
| EAN | 8018851581441 |
| Minimum order quantity | 1 |
| Weight | 588 g |
| Customs tariff number | 85369095 |
| Product range | Control device unit (BN) |
| ETIM class | EC000234 |
