Fandis
SKU:CCU20A231WNIUX

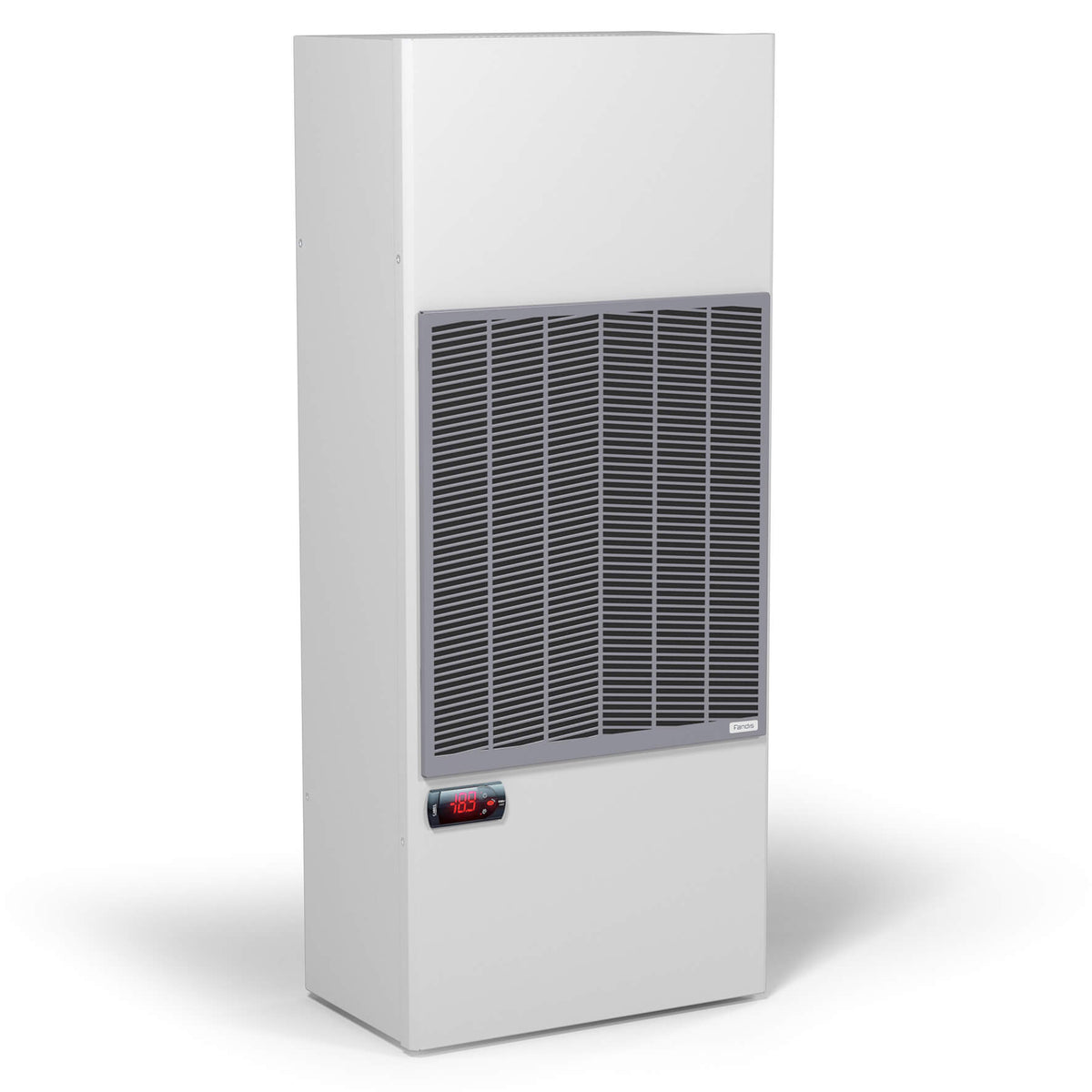

Fandis CCU20A231WNIUX – Indoor Cooling Unit 2000W 230V~1 RAL7035
Fandis CCU20A231WNIUX – Indoor Cooling Unit 2000W 230V~1 RAL7035
Price on request
Shipping calculated at checkout.
The CCU series wall-mounted cooling units represent an ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. The range of cooling units meets different indoor and outdoor application needs, ensuring high technical and safety standards. In all models, the polyurethane gasket is laid by machine, significantly reducing installation times.
Technical specifications
| Manufacturer part number | CCU20A231WNIUX |
|---|---|
| Approvals | CE; UKCA |
| Frequency | 50/60 Hz |
| Fuse T | 12 A |
| Max Current | 26 A |
| Rated Current | 6/6.6 A |
| Rated Power L35L35 | 925/1065 W |
| Rated Power L35L50 | 1075/1295 W |
| Rated Voltage | 230 V a.c. |
| Operating Temperature | 20÷50 °C |
| Protection Degree Enclosure Side | IP54 |
| Casing Material | Painted Steel |
| CO2e | 0.25 t |
| Electrical Connection | Connector |
| GWP | 631 |
| Maximum Allowable Pressure | HP 2.4/LP 0.6 MPa |
| RAL Number | 7035 |
| Refrigerant Charge | 400 g |
| Refrigerant Number | R513A |
| Cooling Capacity L35L35 | 1955/2145 W |
| Cooling Capacity L35L50 | 1565/1635 W |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
