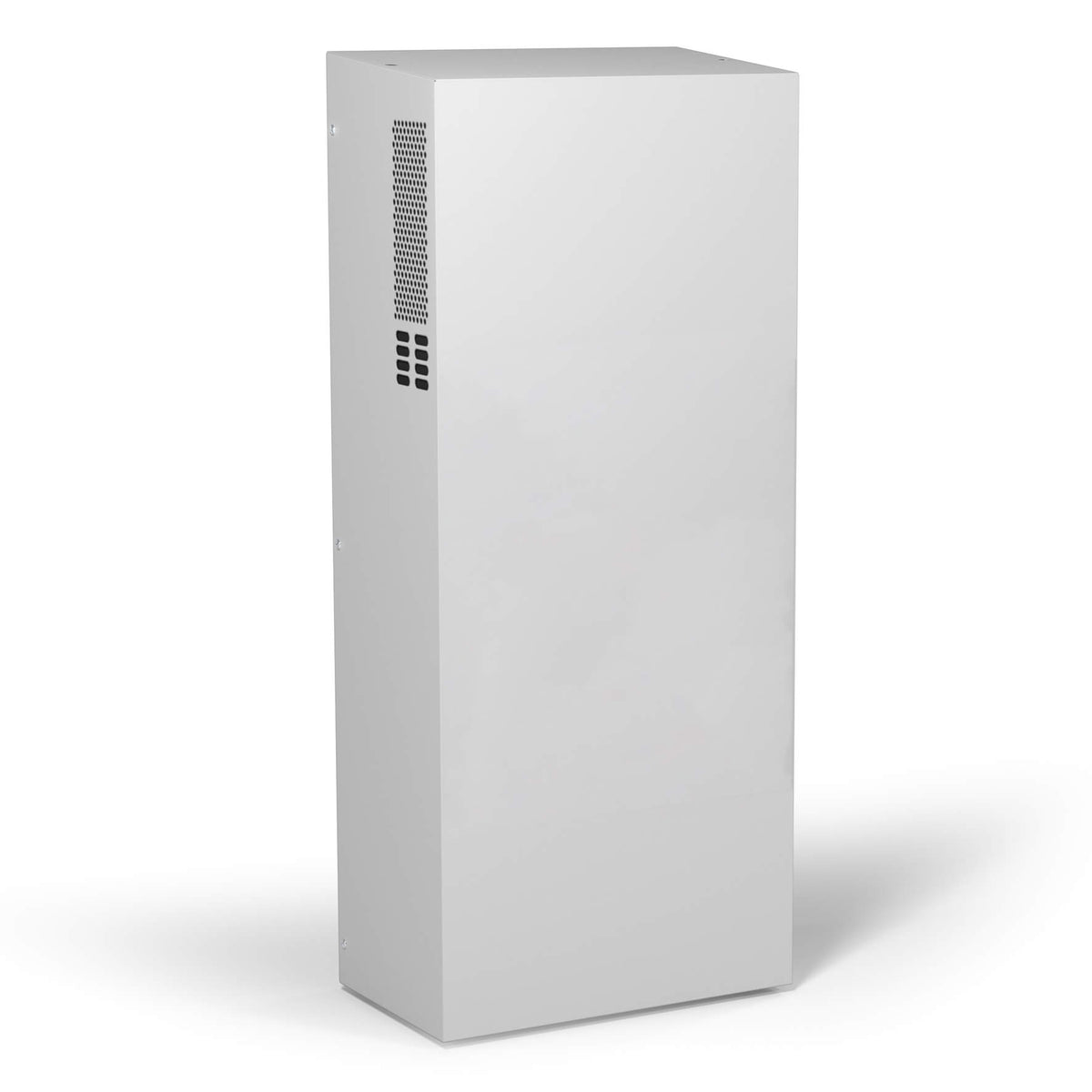

Fandis CCU08A402WNOUX – Outdoor Cooling Unit 800W 380/480V~2 RAL7035

Name: Fandis CCU08A402WNOUX – Outdoor Cooling Unit 800W 380/480V~2 RAL7035
Brand: Fandis
SKU: CCU08A402WNOUX
Availability: InStock

Price on request

Sold out

Shipping calculated at checkout.

Request a price

The CCU series wall-mounted cooling units represent an ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. The range of cooling units meets different indoor and outdoor application needs, ensuring high technical and safety standards. In all models, the polyurethane gasket is laid by machine, significantly reducing installation times.

Technical specifications

Manufacturer part number	CCU08A402WNOUX
Approvals	CE; UKCA
Factory Set Voltage	400 V a.c.
Frequency	50/60 Hz
Fuse T	6 A
Max Current	9 A
Rated Current	1.8/2 A at 380 V a.c. 2 ~ 1.7/1.9 A at 400 V a.c. 2 ~ 1.6/1.8 A at 440 V a.c. 2 ~ 1.5/1.7 A at 460 V a.c. 2 ~ 1.5/1.6 A at 480 V a.c. 2 ~
Rated Power L35L35	395/455 W
Rated Power L35L50	445/535 W
Rated Voltage	380/400/440/460/480 V a.c. 2 ~ at 50/60 Hz
Operating Temperature	-20÷55 °C
Protection Degree Enclosure Side	IP55
Casing Material	Painted Steel
CO2e	0.15 t
Electrical Connection	Connector
GWP	631
Maximum Allowable Pressure	HP 2.4/LP 0.6 MPa
RAL Number	7035
Refrigerant Charge	230 g
Refrigerant Number	R513A
Cooling Capacity L35L35	855/935 W
Cooling Capacity L35L50	685/715 W
