Fandis
SKU:CCU05A231WNIUU

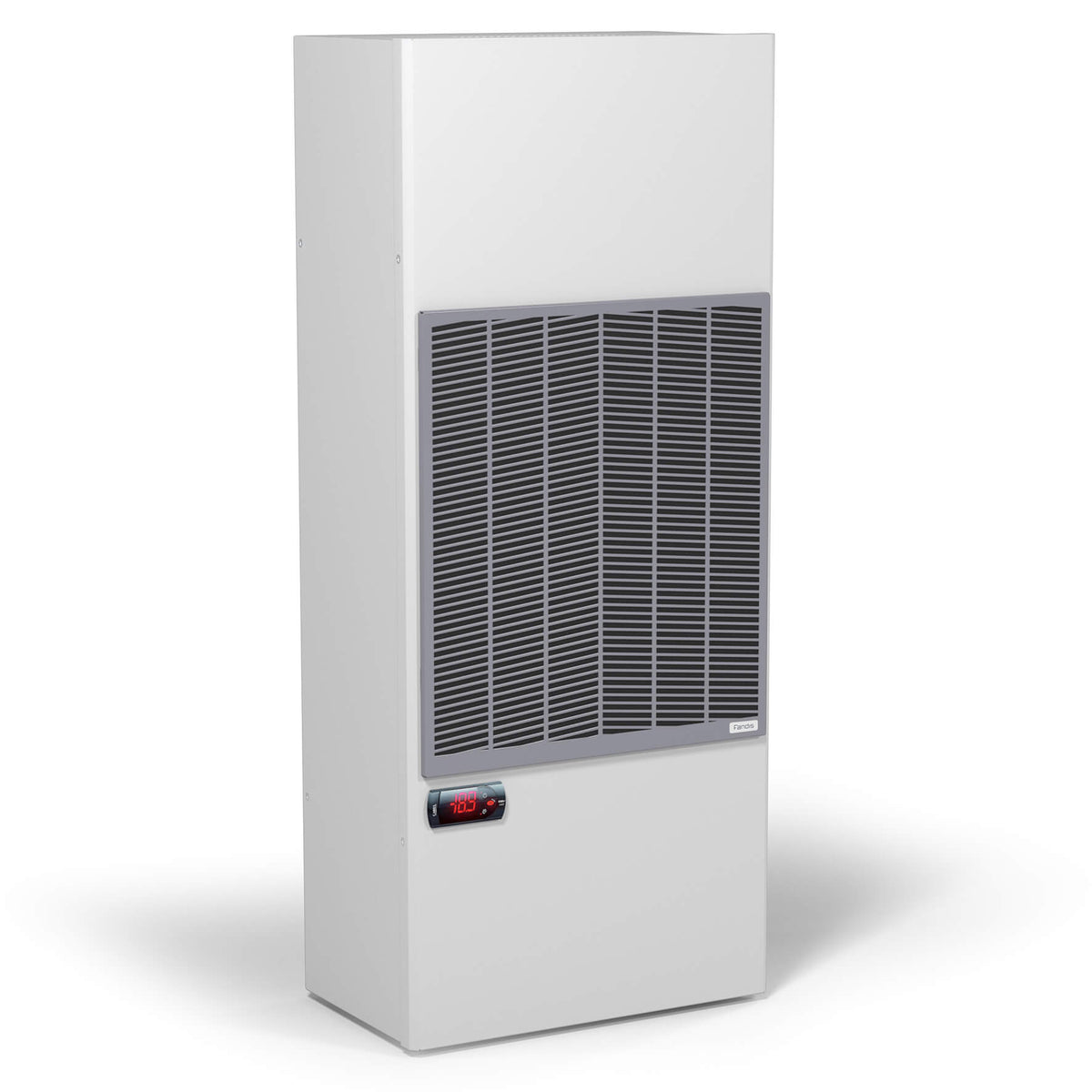

Fandis CCU05A231WNIUU – Indoor Cooling Unit 500W 230V-50/60Hz-1 RAL7035 UL
Fandis CCU05A231WNIUU – Indoor Cooling Unit 500W 230V-50/60Hz-1 RAL7035 UL
Price on request
Shipping calculated at checkout.
The CCU series wall-mounted cooling units represent an ideal solution for cooling electrical panels in high external temperatures, isolating them from the surrounding environment. The range of cooling units meets different indoor and outdoor application needs, ensuring high technical and safety standards. In all models, the polyurethane gasket is laid by machine, significantly reducing installation times.
Technical specifications
| Manufacturer part number | CCU05A231WNIUU |
|---|---|
| Approvals | CE; cULus; UKCA |
| Frequency | 50/60 Hz |
| Fuse T | 15 A |
| Rated Current | 2.2 A |
| Rated Power L35L35 | 275/325 W |
| Rated Power L35L50 | 315/385 W |
| Rated Voltage | 230 V a.c. |
| Operating Temperature | 20÷55 °C |
| Protection Degree Enclosure Side | IP54 |
| Casing Material | Painted Steel |
| CO2e | 0.13 t |
| Electrical Connection | Connector |
| GWP | 631 |
| Maximum Allowable Pressure | HP 377 Psig (26.0 bar) / LP 88 Psig (6.0 bar) |
| RAL Number | 7035 |
| Refrigerant Charge | 210 g |
| Refrigerant Number | R513A |
| Cooling Capacity L35L35 | 525/575 W |
| Cooling Capacity L35L50 | 425/445 W |
| UL Environmental Type Rating | Type 12 |
| UL File Number Listed | SA46405 |
