SALTEK
SKU:A01952
SLP-385 V/3
SLP-385 V/3
Price on request
Shipping calculated at checkout.

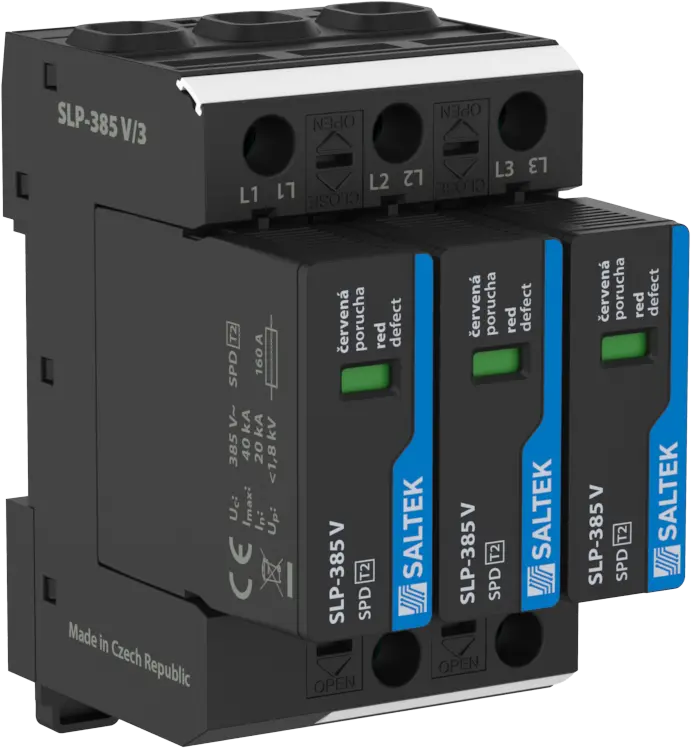

SALTEK SLP-385 V/3 — Pluggable module, visual fault signalling, module locking, three-pole varistor surge arrester, installation to LV installations, especially to sub-distribution boards in TN-C systems or TN-S without neutral conductor, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages, for applications with fluctuating voltage.
Technical specifications
| SALTEK order number | A01952 |
|---|---|
| EAN | 8595090519522 |
| Nominal voltage | 230 V |
| Maximum operating voltage | 385 V AC |
| Nominal discharge current | 20 kA |
| Voltage protection level | 1.8 kV |
| ETIM class | EC000941 |
| Net weight | 330 g |
| Packing dimensions | 123 × 83 × 65 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
Need help selecting components?
Talk to our team for expert guidance and product recommendations.
