SALTEK
SKU:A01763
SLP-275 V/4 S
SLP-275 V/4 S
Regular price
€116,98 EUR
Regular price
Sale price
€116,98 EUR
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability

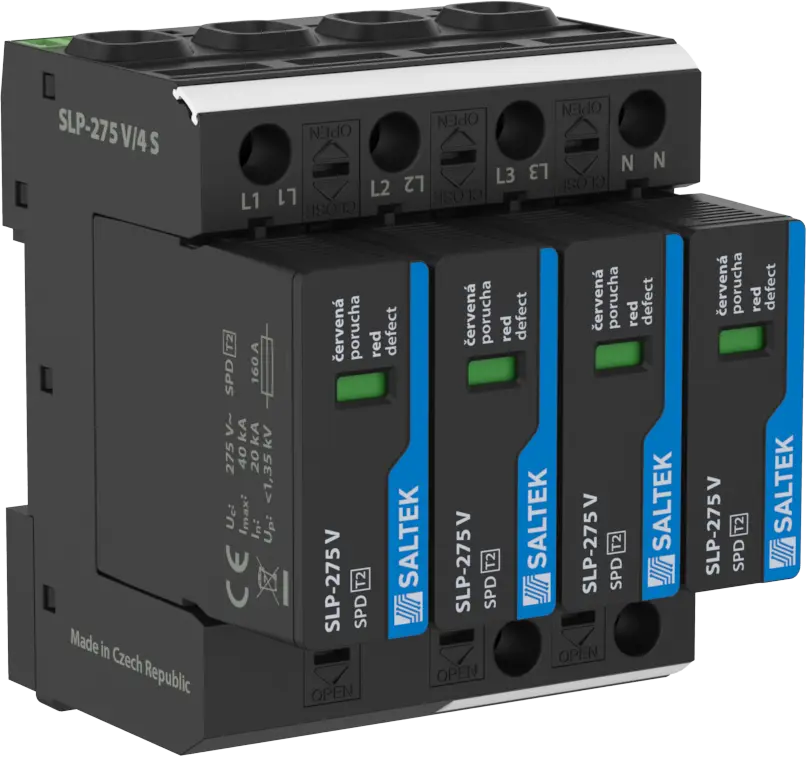

SALTEK SLP-275 V/4 S — Pluggable module, visual fault signalling, module locking, remote fault signalling, four-pole varistor surge arrester, installation to LV installations, especially to sub-distribution boards in TN-S systems, for protection of the installations and equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A01763 |
|---|---|
| EAN | 8595090517634 |
| Nominal voltage | 230 V |
| Maximum operating voltage | 275 V AC |
| Maximum operating voltage (DC) | 350 V DC |
| Nominal discharge current | 20 kA |
| Voltage protection level | 1.35 kV |
| ETIM class | EC000941 |
| Net weight | 410 g |
| Packing dimensions | 123 × 83 × 80 mm |
