SALTEK
SKU:A03424
FLP-12,5 V/1S+1
FLP-12,5 V/1S+1
Couldn't load pickup availability

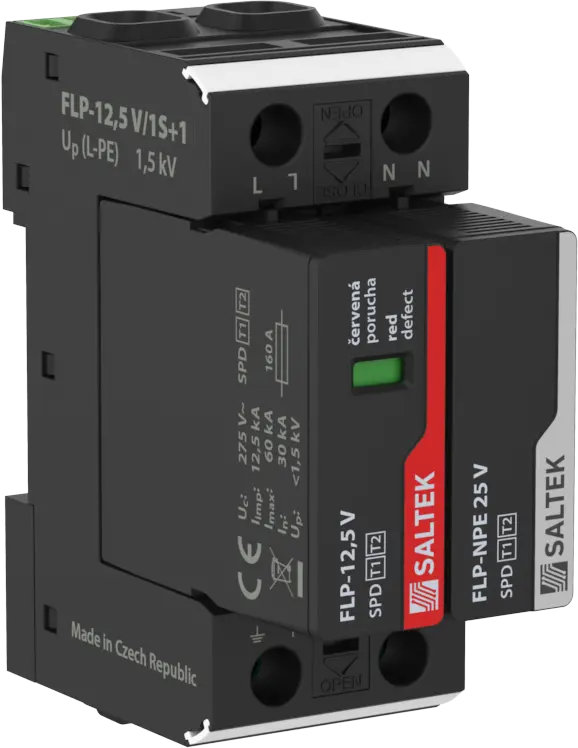

SALTEK FLP-12,5 V/1S+1 — Pluggable module, visual fault signalling, module locking, remote fault signalling, combination of varistor lightning current arrester and encapsulated efficiency spark gap, connected in the 1+1 mode, installation at the boundary of zones LPZ 0 and LPZ 1 or higher, for objects in LPL III and IV, for protection against impact of partial lightning currents, induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A03424 |
|---|---|
| EAN | 8595090534242 |
| Nominal voltage | 230 V |
| Maximum operating voltage | 275 V AC |
| ETIM class | EC000381 |
| Net weight | 260 g |
| Packing dimensions | 124 × 82 × 43 mm |
