SALTEK
SKU:A05151
DS-V130-RS
DS-V130-RS
Price on request
Shipping calculated at checkout.

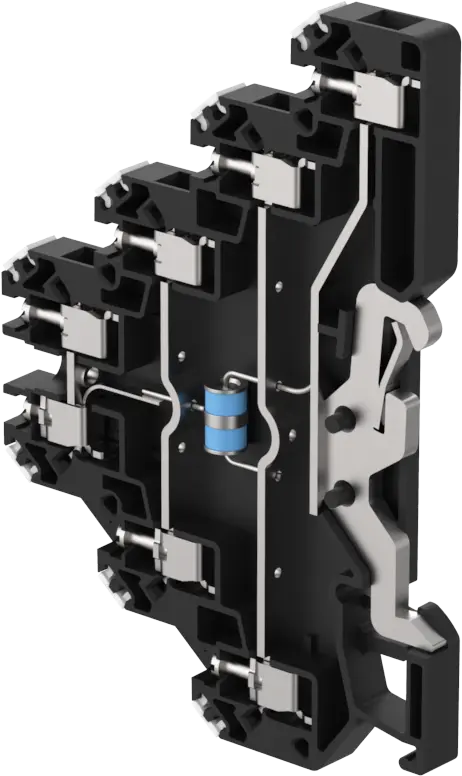

SALTEK DS-V130-RS — V – Varistor, screw terminals, single stage surge arrester, installation close to protected equipment, for protection of signaling, data and other lines against impact of surge voltage.
Technical specifications
| SALTEK order number | A05151 |
|---|---|
| EAN | 8595090551515 |
| Maximum operating voltage | 140 V AC |
| Maximum operating voltage (DC) | 180 V DC |
| Nominal load current | 16 A |
| ETIM class | EC000943 |
| Net weight | 35 g |
| Packing dimensions | 102 × 71 × 27 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
