SALTEK
SKU:A06070
DS-B090-RB
DS-B090-RB
Price on request
Shipping calculated at checkout.

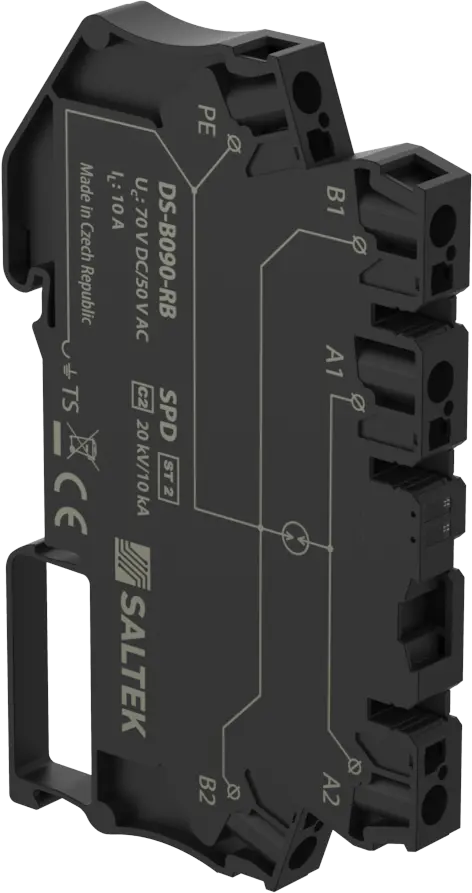

SALTEK DS-B090-RB — B – Gas Discharge Tube, screwless terminal, coarse single stage surge arrester, for protection of signaling, data and other lines against impact of surge voltage, usable mainly for the separation of shielding from the protective earth.
Technical specifications
| SALTEK order number | A06070 |
|---|---|
| EAN | 8595090560708 |
| Maximum operating voltage | 50 V AC |
| Maximum operating voltage (DC) | 70 V DC |
| Nominal load current | 10 A |
| ETIM class | EC000943 |
| Net weight | 30 g |
| Packing dimensions | 124 × 82 × 25 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
