SALTEK
SKU:A05664
DP-012-V/1-F16
DP-012-V/1-F16
Price on request
Shipping calculated at checkout.

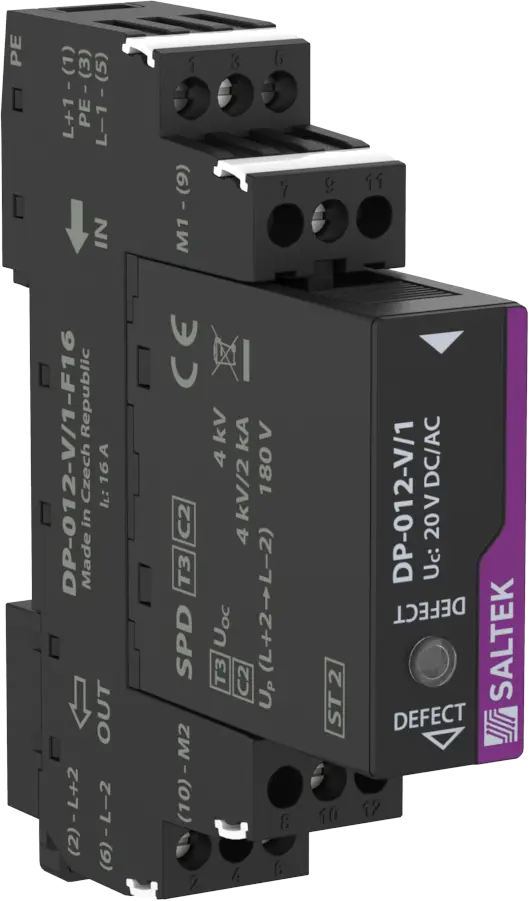

SALTEK DP-012-V/1-F16 — Pluggable module, visual fault signalling, middle conductor separated from protective earth via GDT, surge protection for all types of LV electric and electronic equipments against surge voltage, installation to LV installations, close to protected equipment, for protection of the equipments against impact of induced overvoltages during a lightning strike or switching overvoltages.
Technical specifications
| SALTEK order number | A05664 |
|---|---|
| EAN | 8595090556640 |
| Maximum operating voltage | 20 V AC |
| Maximum operating voltage (DC) | 20 V DC |
| Nominal load current | 16 A |
| ETIM class | EC000943 |
| Net weight | 90 g |
| Packing dimensions | 124 × 82 × 25 mm |
