DM-012/1 3L DJ

Name: DM-012/1 3L DJ
Brand: SALTEK
SKU: A02094
Availability: InStock

Price on request

Sold out

Shipping calculated at checkout.

Request a price

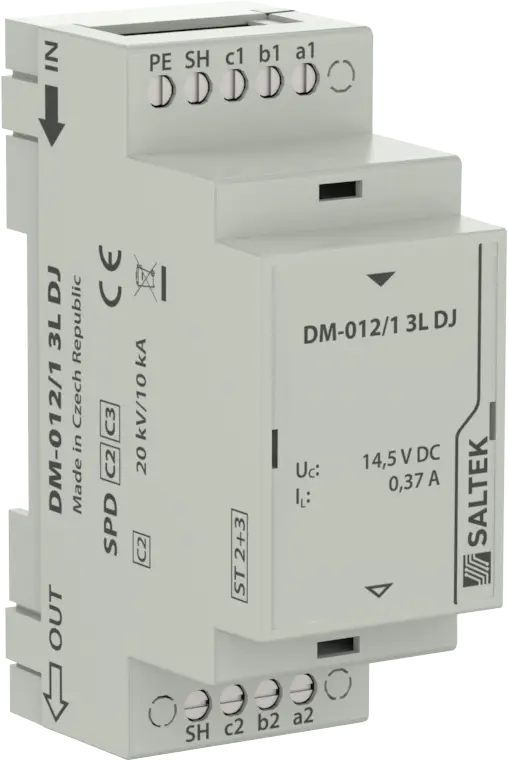

SALTEK DM-012/1 3L DJ — Coupling impedance (L – inductance), coarse and fine surge protection for 3-core signalling lines, installation close to protected equipment, for protection of communication interfaces of I&C, electronic security and fire detection systems, etc. (mainly for RS-485 interfaces) against impact of surge voltage, coarse and fine surge protection in differential mode (core – core) and coarse protection in common mode (core – PE).

Technical specifications

SALTEK order number	A02094
EAN	8595090520948
Nominal voltage	12 V
Maximum operating voltage	10.2 V AC
Maximum operating voltage (DC)	14.5 V DC
Nominal load current	0.37 A
Frequency / bandwidth value	0.16 MHz
ETIM class	EC000943
Net weight	70 g
Packing dimensions	65 × 63 × 105 mm
