SALTEK
SKU:A03382

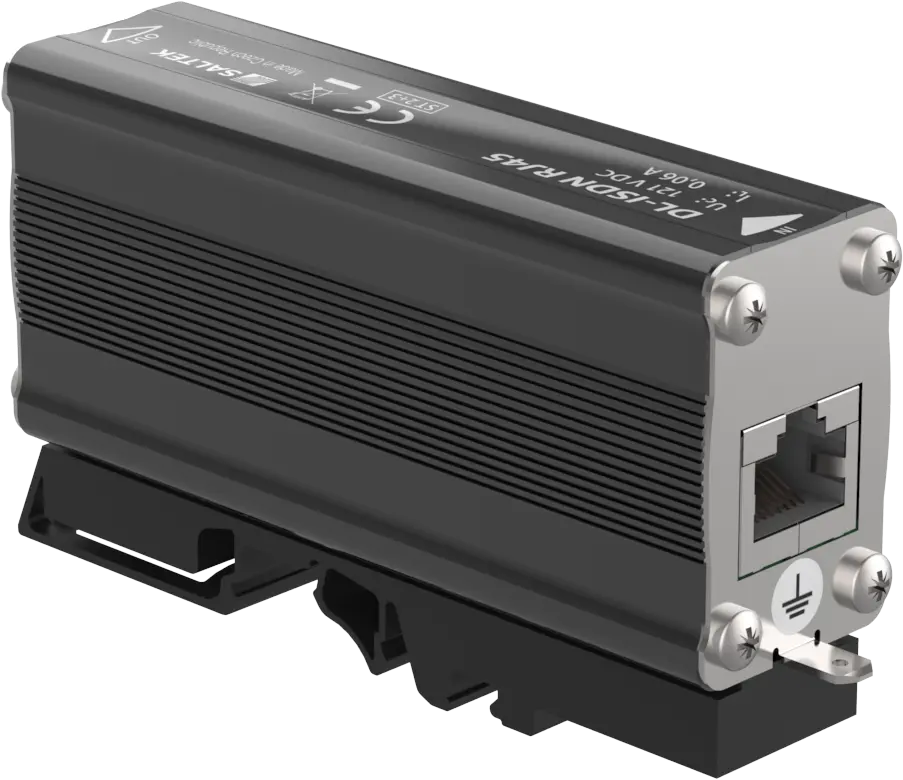

DL-ISDN RJ45
DL-ISDN RJ45
Price on request
Shipping calculated at checkout.
SALTEK DL-ISDN RJ45 — RJ45 sockets, combination of coarse and fine protection for ISDN lines, for protection of one pair of ISDN line in telecommunication equipment, in the scope of delivery: universal plastic adapter for mounting on DIN rail and GND 2 holder.
Technical specifications
| SALTEK order number | A03382 |
|---|---|
| EAN | 8595090533825 |
| Nominal voltage | 121 V |
| Maximum operating voltage | 86 V AC |
| Maximum operating voltage (DC) | 121 V DC |
| Nominal load current | 0.06 A |
| Frequency / bandwidth value | 80 MHz |
| ETIM class | EC000943 |
| Net weight | 125 g |
| Packing dimensions | 120 × 80 × 35 mm |
