SALTEK
SKU:A04209

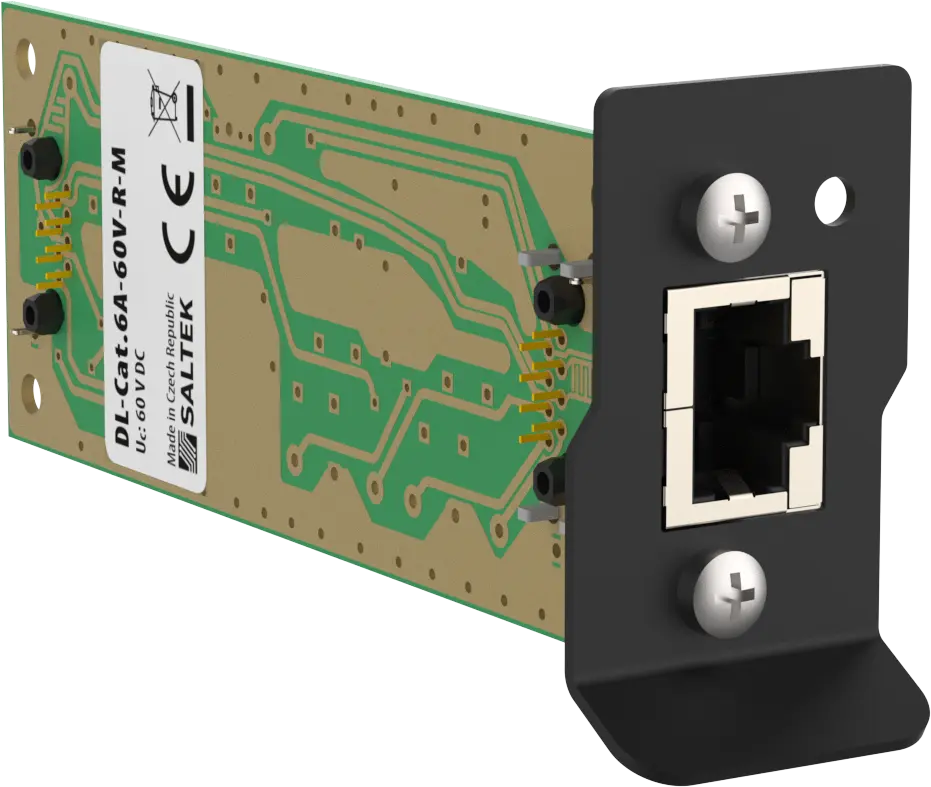

DL-Cat.6A-60V-R-M
DL-Cat.6A-60V-R-M
Price on request
Shipping calculated at checkout.
SALTEK DL-Cat.6A-60V-R-M — LPZ 1 and higher, for general structured cabling networks, fine SPD for Ethernet with PoE and general structured cabling networks, LPZ 1 to LPZ 2 boundary installation close to protected equipment, to protect devices working with signals over twisted pairs up to 60 V, to protect Ethernet networks with PoE, to protect ISDN networks, module for installation into DL-PL-RACK-1U box.
Technical specifications
| SALTEK order number | A04209 |
|---|---|
| EAN | 8595090542094 |
| Nominal voltage | 60 V |
| Maximum operating voltage (DC) | 60 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 500 MHz |
| ETIM class | EC000943 |
| Net weight | 26 g |
| Packing dimensions | 26 × 98 × 42.5 mm |
Technical documentation
Access the latest datasheets, certificates, manuals, CAD files and detailed technical information directly from the manufacturer.
Manufacturer:
SALTEK
