SALTEK
SKU:A06149
DL-10G-RJ45-PoE-AB
DL-10G-RJ45-PoE-AB
Price on request
Shipping calculated at checkout.

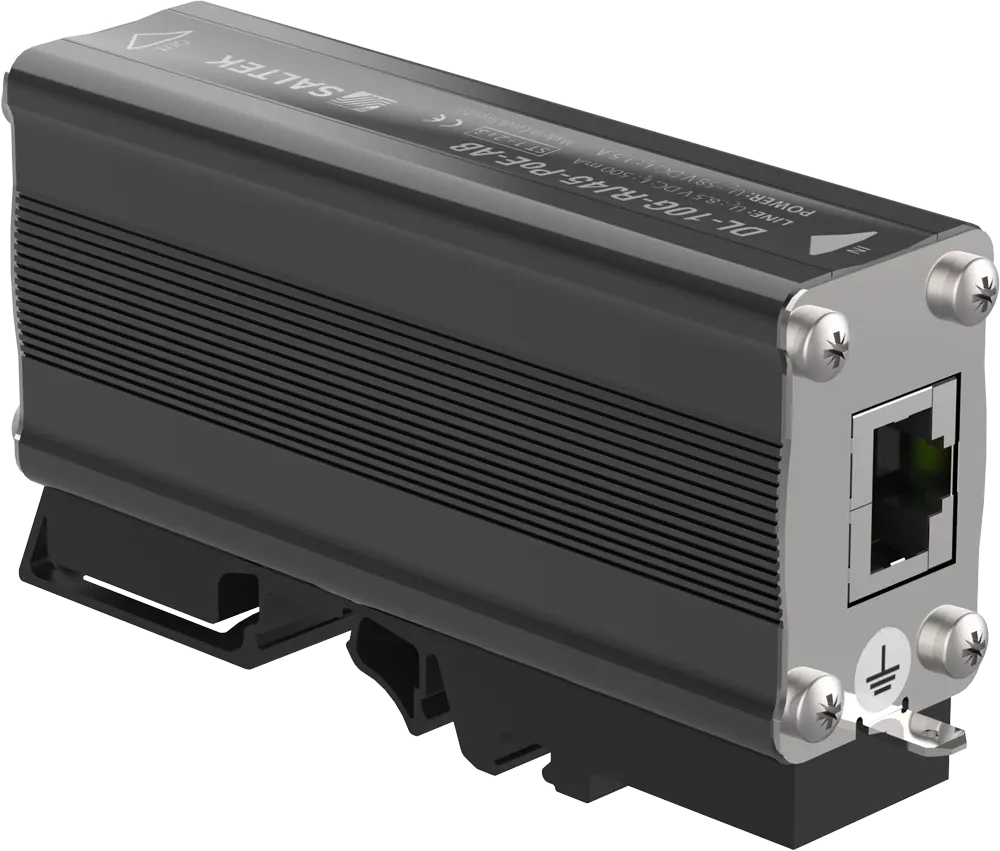

SALTEK DL-10G-RJ45-PoE-AB — RJ45 sockets, combination of coarse and fine protection of Ethernet line with PoE, instalation at the entry of the line into building and close to protected equipment, at the boundary of LPZ 0 and LPZ 1 or higher, for protection of Ethernet line with PoE against surge voltage, for all types of PoE / PoE + / PoE ++, in the scope of delivery: universal plastic adapter for mounting on DIN rail and GND 2 holder.
Technical specifications
| SALTEK order number | A06149 |
|---|---|
| EAN | 8595090561491 |
| Nominal voltage | 8.5 V |
| Maximum operating voltage (DC) | 8.5 V DC |
| Nominal load current | 0.5 A |
| Frequency / bandwidth value | 500 MHz |
| ETIM class | EC000943 |
| Net weight | 135 g |
| Packing dimensions | 120 × 81 × 35 mm |
