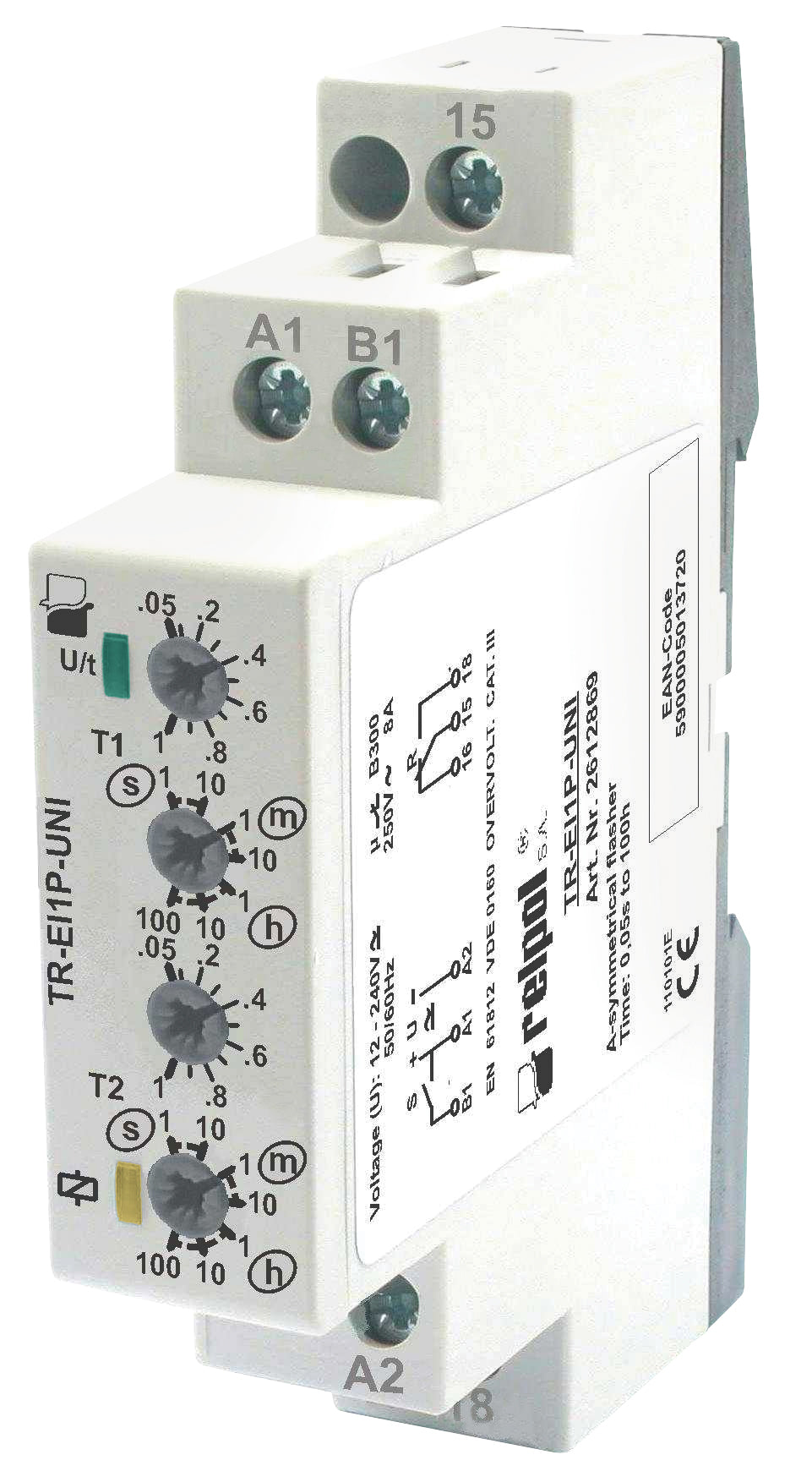

Relpol TR-EI1P-UNI – Time Relays

Name: Relpol TR-EI1P-UNI – Time Relays
Brand: Relpol
SKU: TR-EI1P-UNI
Availability: InStock

Price on request

Sold out

Shipping calculated at checkout.

Request a price

Time relays , TR-EI1P-UNI, 1 CO ( SPDT), AgNi, 12...240V AC/DC. •Time relays with independently controled times T1 and T2, time function Ii, Ip (Cyclical operation in two independent intervals T1 and T2), 7 time ranges. Rated load AC1 8 A, Rated switching voltage 250 V AC, Operating temperature °C -20…+55, mounting on 35 mm rail

Technical specifications

Type of coil supply	AC/DC
Coil voltage	12...240 V
Contact material	AgNi
Number and type of contacts	1 CO
Rated load AC1	8 A / 250 V AC
Rated switching voltage	250 V AC
Mounting	mounting on 35 mm rail
Depth	87
Width mm	35
Height mm	65
Weight kg	0,12
ETIM class	EC001439
Relay type	TR
Ip cover	IP 20
Time ranges	1 s; 10 s; 1 min.; 10 min.; 1 h; 10 h; 100 h
