Relpol
SKU:RSP-PV12.5-1200-3P

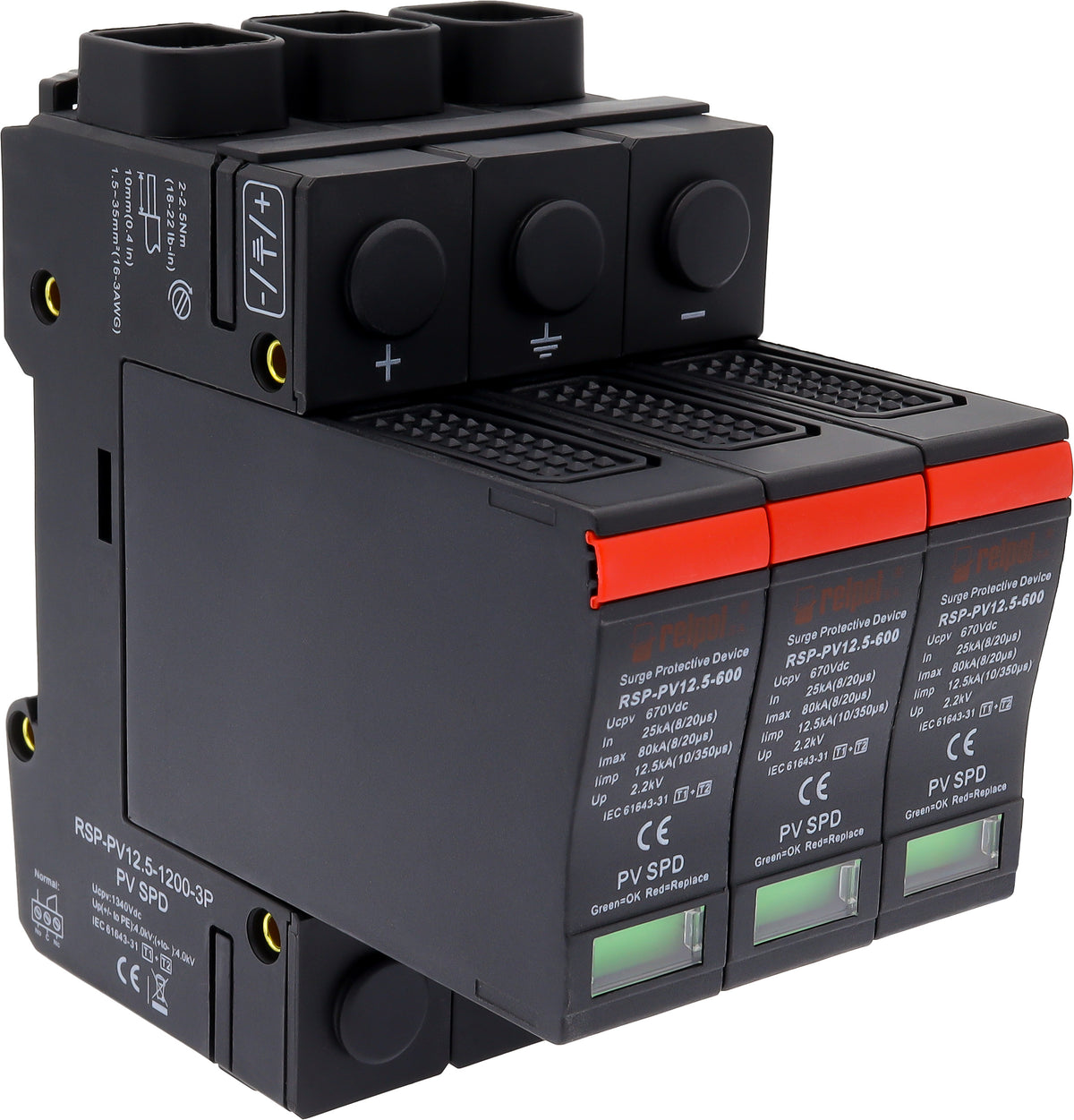

Relpol RSP-PV12.5-1200-3P – Photovoltaic (PV) Surge Protection
Relpol RSP-PV12.5-1200-3P – Photovoltaic (PV) Surge Protection
Price on request
Shipping calculated at checkout.
Surge arrester for DC installations for DC/PV networks. Plug-in design Class I+II (T1+T2), number of poles 3. Rated voltage 1200 V DC. Rated discharge current In 25KA, max discharge current 80KA, peak current Iimp 12.5 kA 10/350. MOV technology with potential-free contact for remote fault indication.
Technical specifications
| Depth | 87 |
|---|---|
| Width mm | 54,3 |
| Height mm | 88,6 |
| Weight kg | 0,589 |
| ETIM class | EC001457 |
| Ip cover | IP20 |
