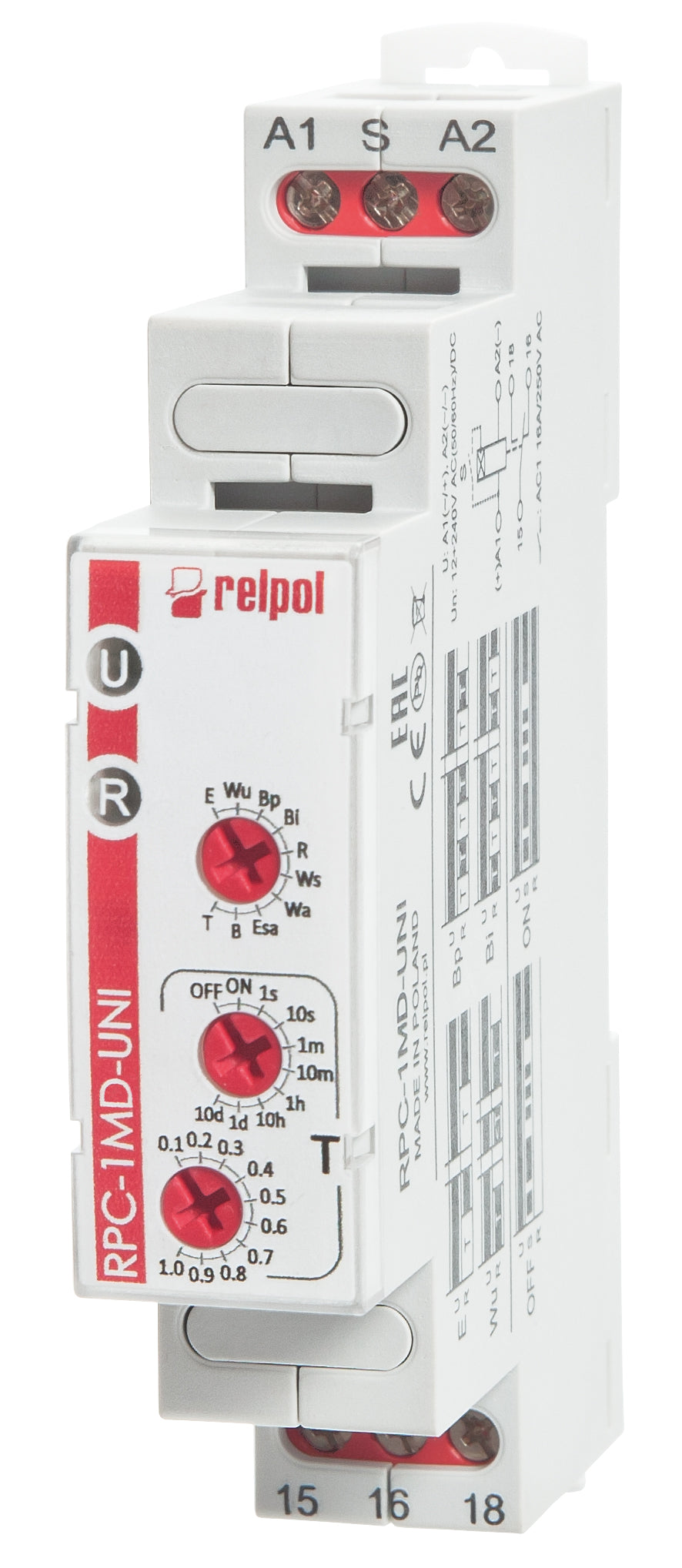

Relpol RPC-1MD-UNI – Time Relays

Name: Relpol RPC-1MD-UNI – Time Relays
Brand: Relpol
SKU: RPC-1MD-UNI
Availability: InStock

Price on request

Sold out

Shipping calculated at checkout.

Request a price

Multifunction time relays - i mmediate activation of the selected function - without having to temporarily turn off the power supply . 10 time functions. 8 time ranges. Cadmium - free contacts 1 CO. Rated input voltage UNI 12...240VAC/DC

Technical specifications

Type of coil supply	AC/DC
Coil voltage	12...240 V
Contact material	AgSnO2
Number and type of contacts	1 CO
Rated load AC1	16 A / 250 V AC
Rated load DC1	16 A / 24 V DC
Mounting	mounting on 35 mm rail
Depth	90
Width mm	17,5
Height mm	64,5
Weight kg	0,065
ETIM class	EC001439
Relay type	RPC
Ip cover	IP 20
Time ranges	1 s; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d
