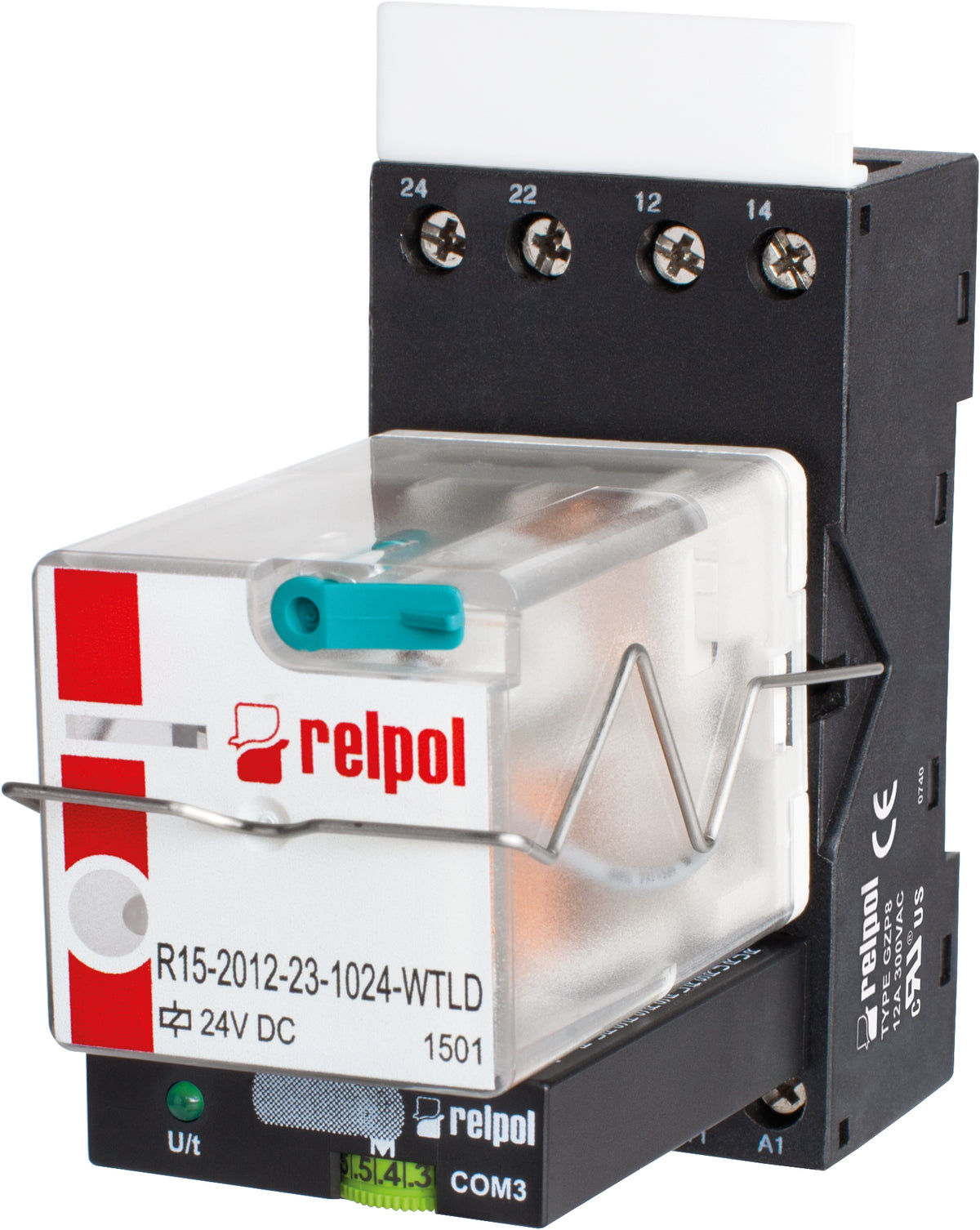

Relpol PIR153-024DC-00T – Time Relays

Name: Relpol PIR153-024DC-00T – Time Relays
Brand: Relpol
SKU: PIR153-024DC-00T
Availability: InStock

Price on request

Sold out

Shipping calculated at checkout.

Request a price

Time relays , PIR153-024DC-00T, 3 CO ( 3PDT), AgNi, 24V DC, Rated load AC1 10 A, Rated load AC3 370 W, Rated switching voltage 250 V AC, Operating temperature °C -40…+55, mounting on 35 mm rail

Technical specifications

Type of coil supply	DC
Coil voltage	24 V
Contact material	AgNi
Number and type of contacts	3 CO
Rated load AC1	10 A / 250 V AC
Rated load AC3	0,37 kW
Rated load DC1	10 A / 24 V DC
Rated switching voltage	250 V AC
Mounting	mounting on 35 mm rail
Depth	73
Width mm	38,2
Height mm	85,4
Weight kg	0,175
ETIM class	EC001439
Relay type	PIR15...T
Ip cover	IP 20
Time ranges	1 s; 10 s; 1 min.; 10 min.; 1 h; 10 h; 1 d; 10 d
